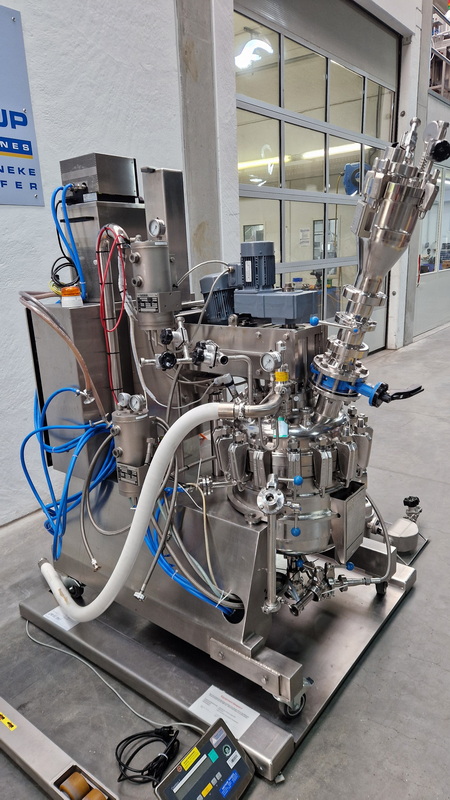

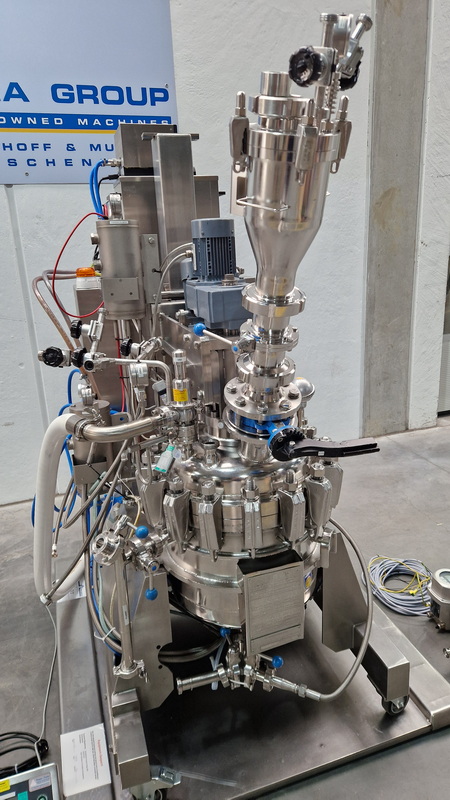

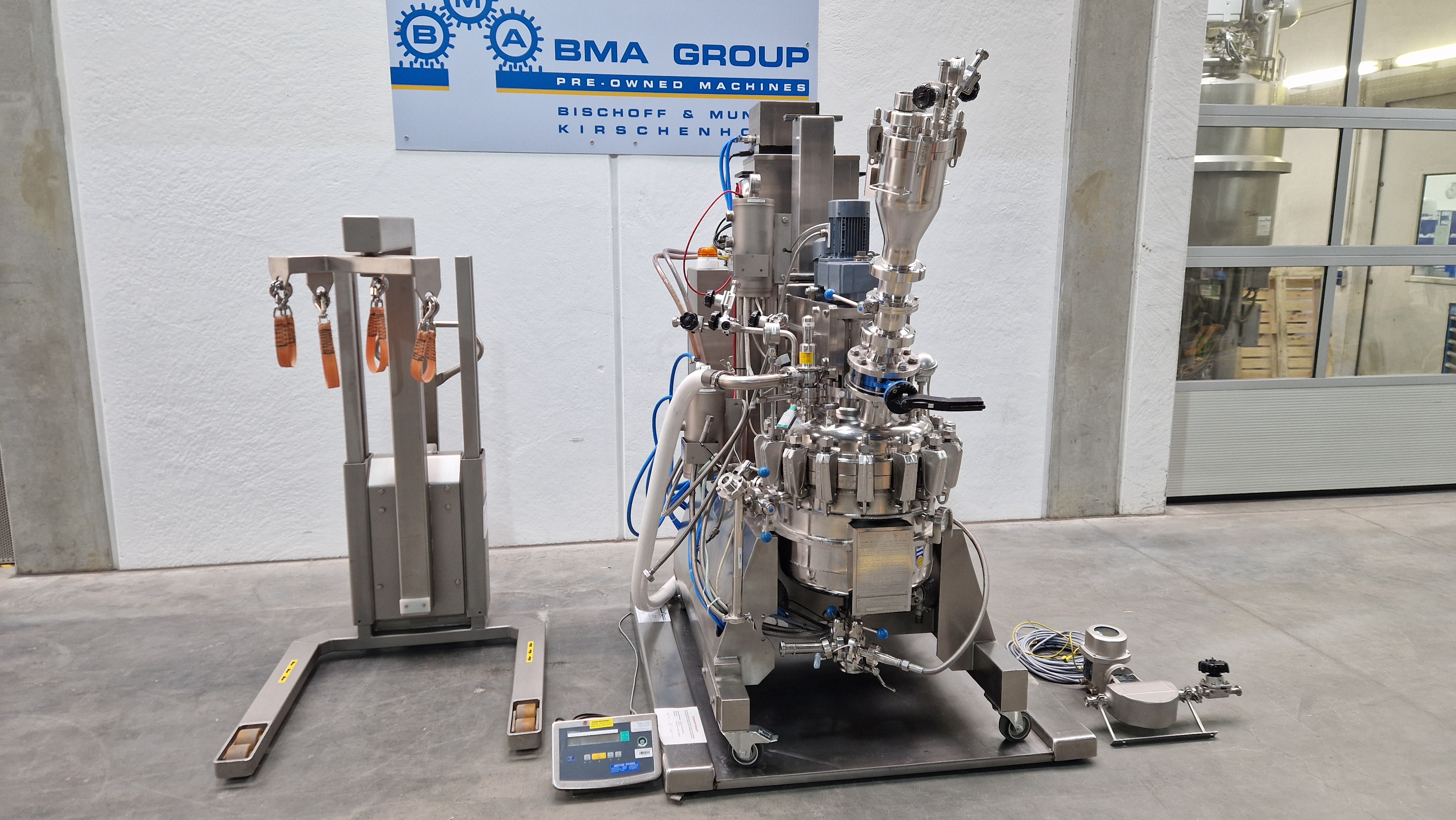

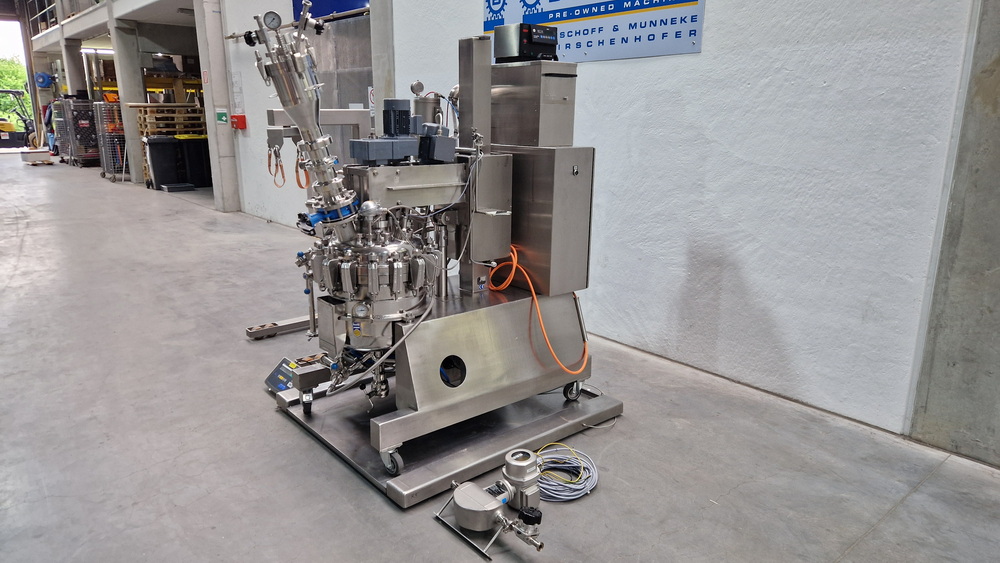

Herbst HRZV-S 40 HO Vacuum/pressure central agitator
Pos.-No.: 01-0345
Pos.-No.: 01-0345

Herbst HRZV-S 40 HO

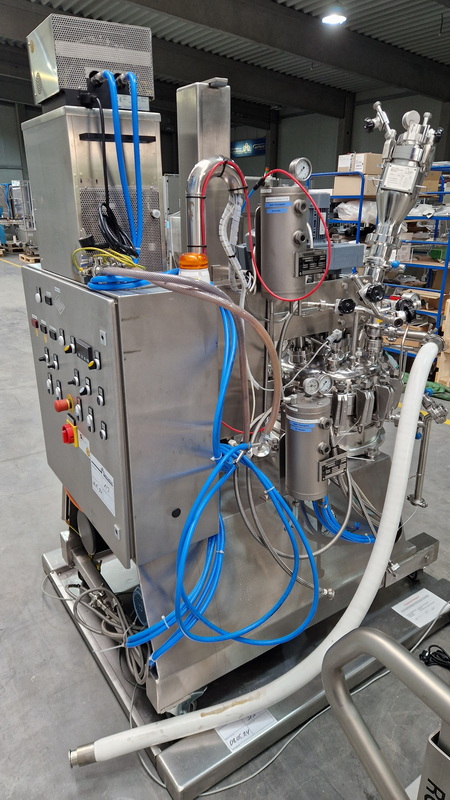

Vacuum/pressure central agitator

Make: Herbst
Type: HRZV-S 40 HO
Model: 2003
Description:

• Suitable for mixing powdery and liquid media
• Parts in contact with the product made of stainless steel 1.4435 (AISI 316 L)
• Useful volume 8-32 litres
• Operating pressure -1.0 to +10 bar
• Temperature range 0-130°C
• Max. Product viscosity approx. 10,000 mPas

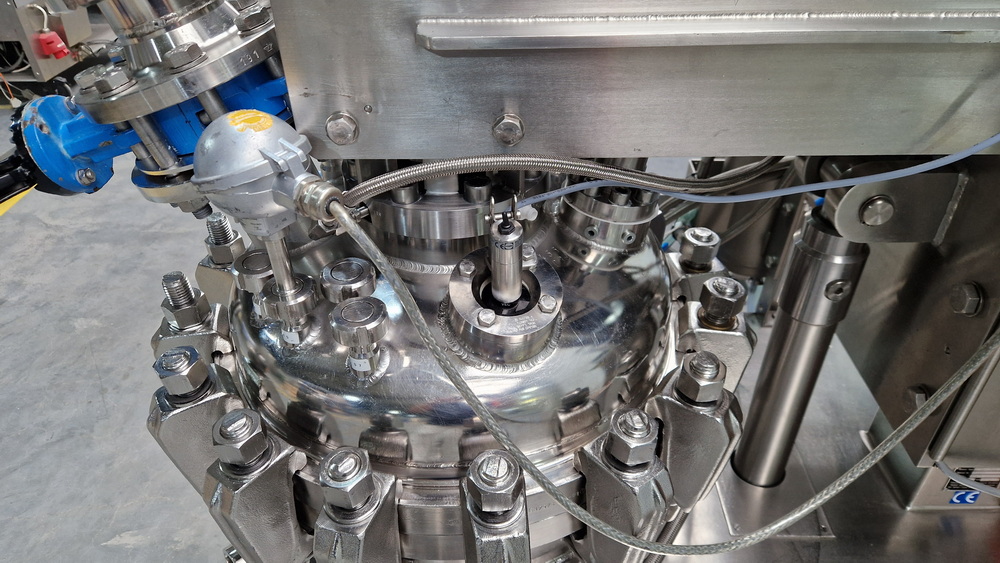

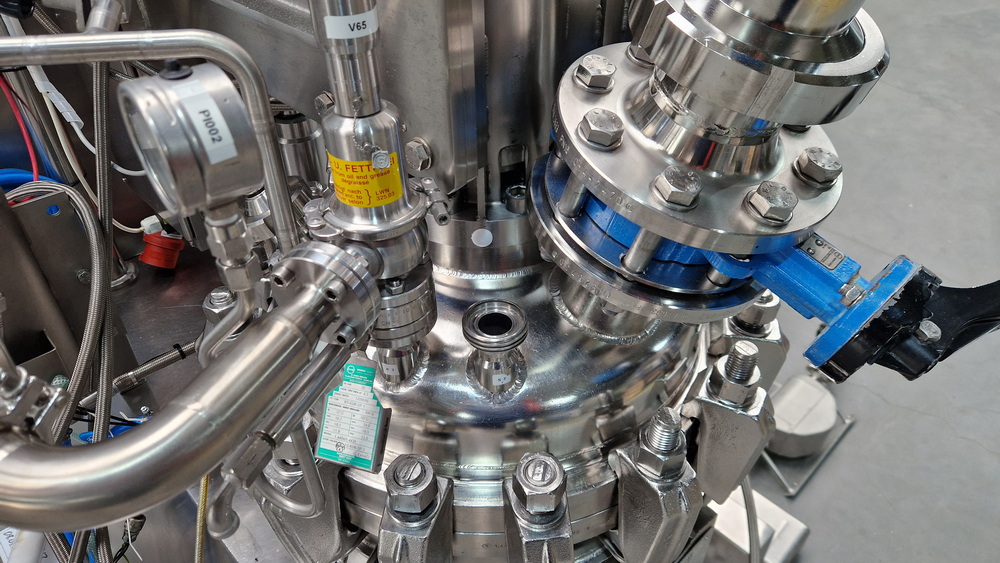

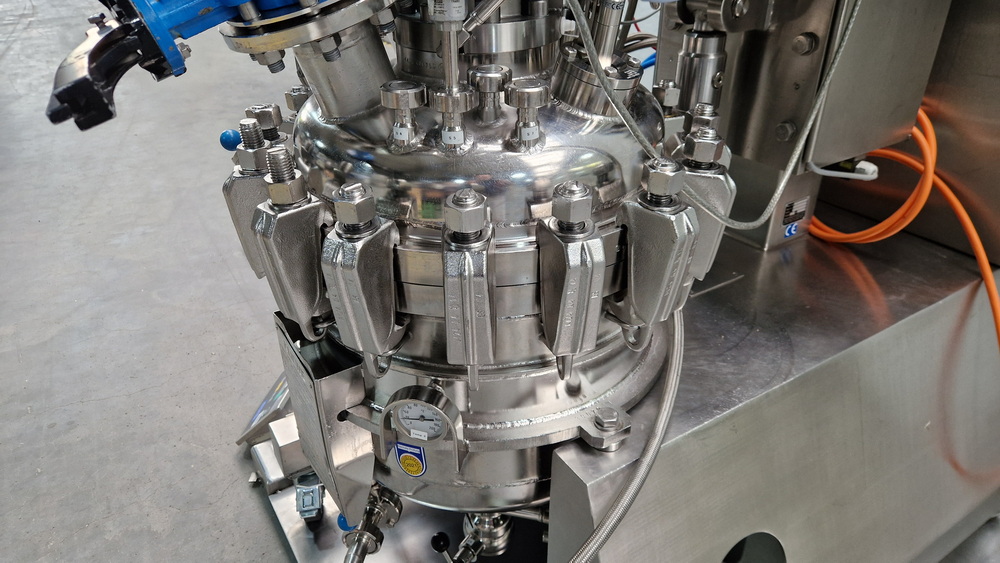

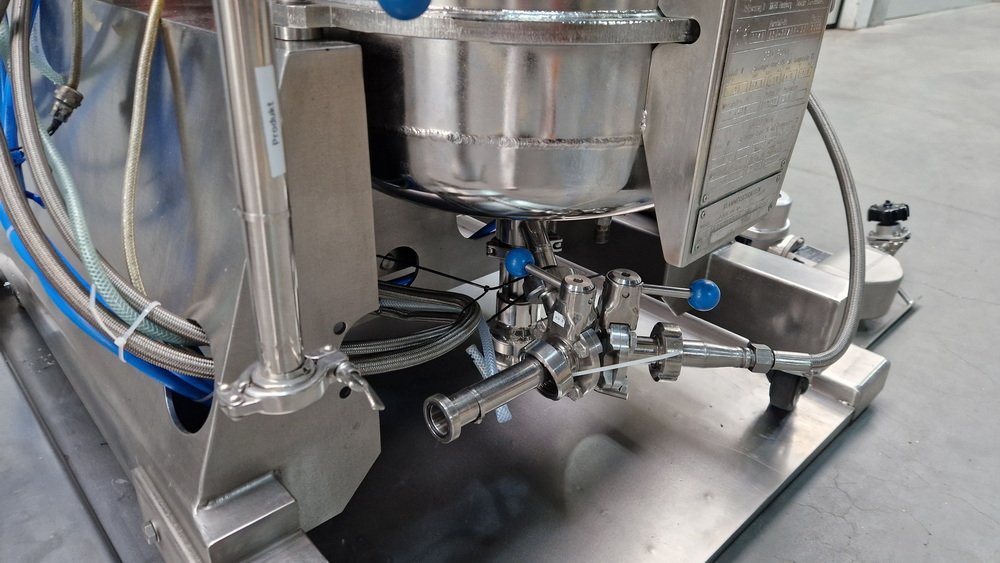

• Agitator tank 75 litres with double jacket 5 litres

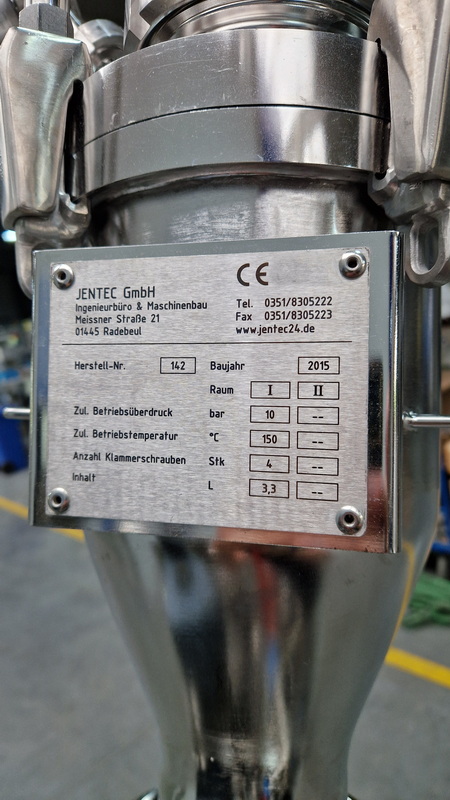

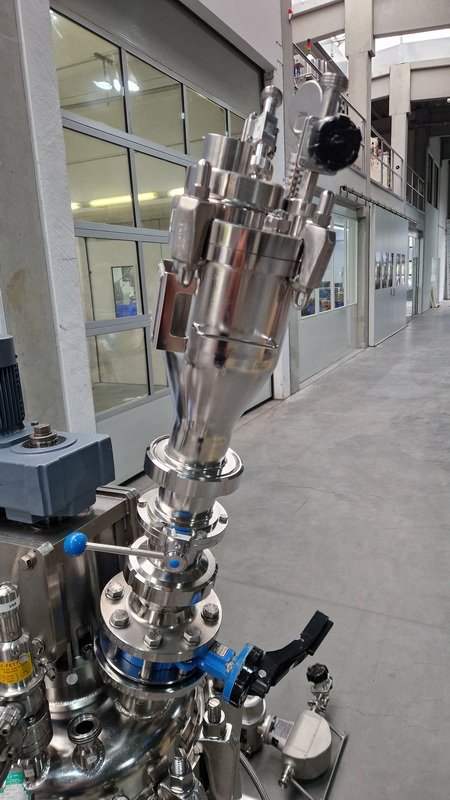

• Feed vessel 3.3 litres, operating pressure 0-10 bar, operating temperature max. 150°C, manufactured by Jentec, year of manufacture 2015

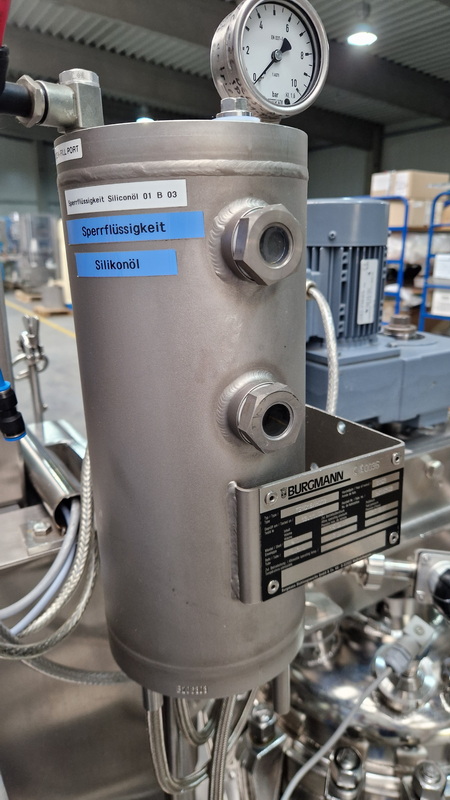

• Centrally arranged anchor agitator, power 0.37 kW, speed range 10-50 rpm, additional conveying elements on agitator shaft and outer anchor (product lowering), PTFE scraper elements for tank wall and base, double-acting mechanical seal, silicone oil sealing liquid
• Eccentrically mounted propeller agitator with 2 blades
• Operated with external circulating homogeniser for emulsifying and pumping over and out (not included in the scope of delivery)

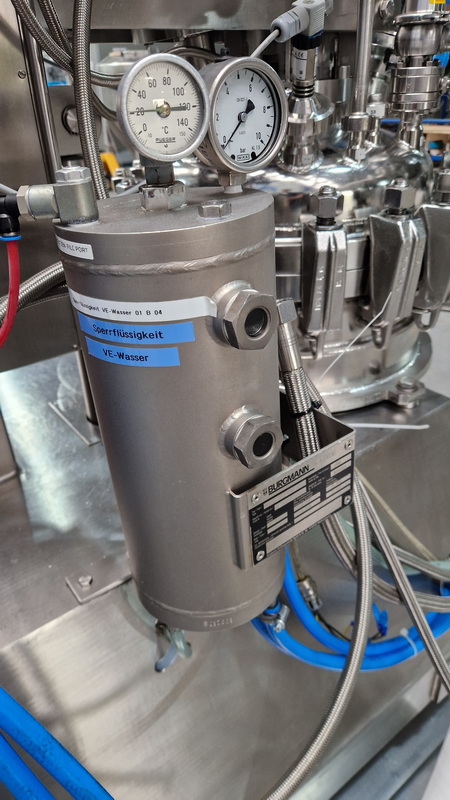

• Device for supplying the double-acting mechanical seal of the homogeniser with sealing liquid deionised water available
• Hydraulic container lid/agitator lifting device with hydraulic pump
• Circulation pump
• Operated with separate water ring vacuum pump (not included in the scope of delivery)

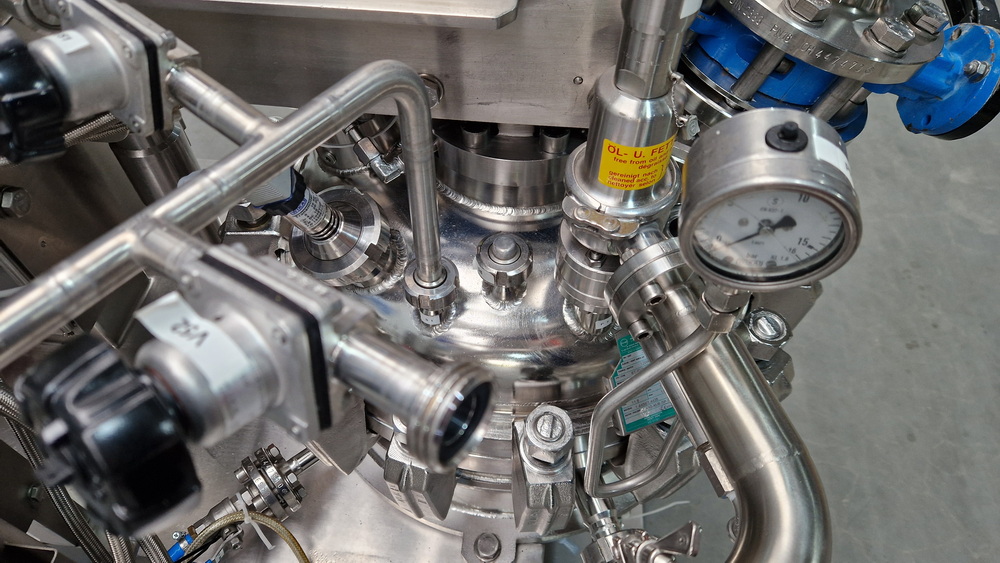

• 16 pressure fittings

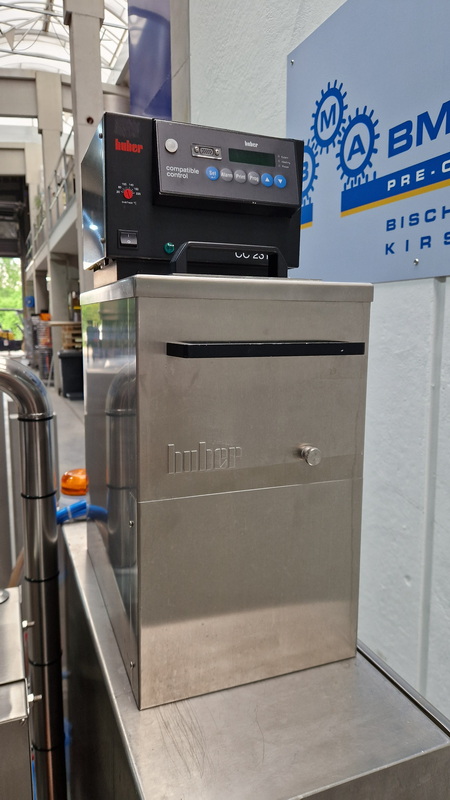

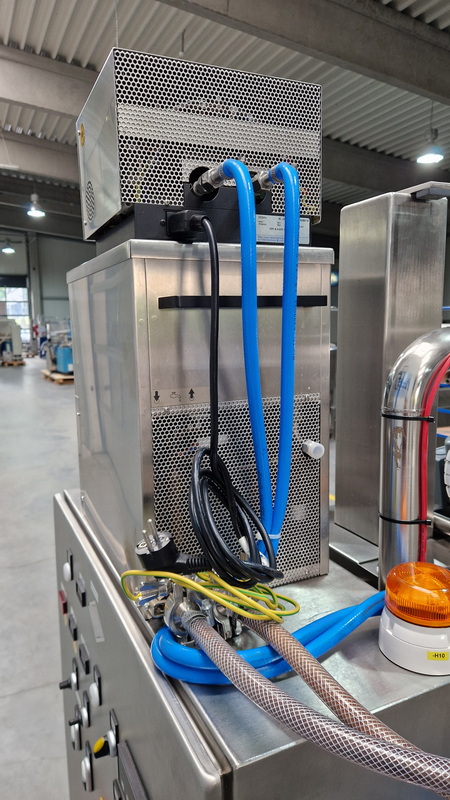

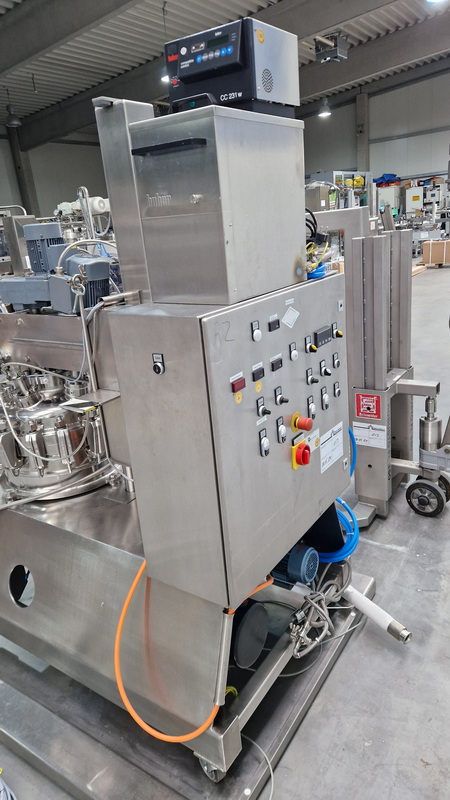

• Huber CC231w cooling/heating thermostat (temperature control unit) for heating/cooling the double jacket

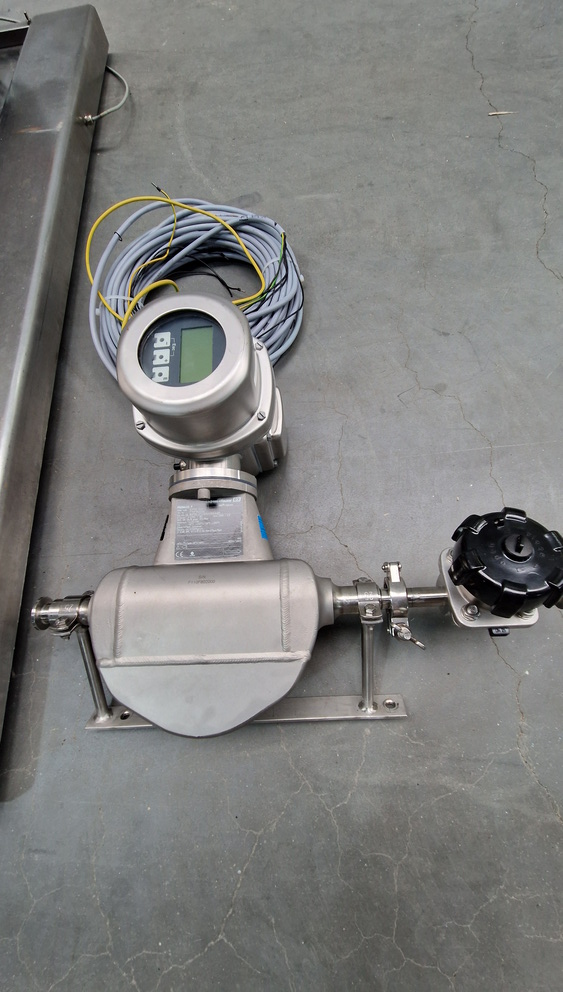

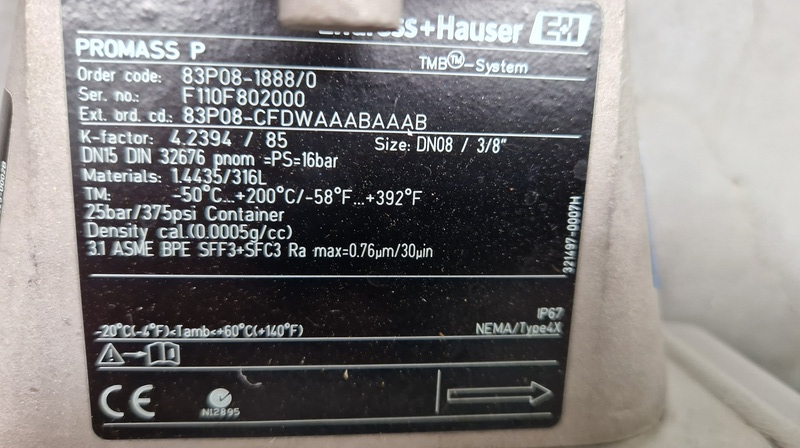

• Flow meter in product return line Endress+Hauser Promass P

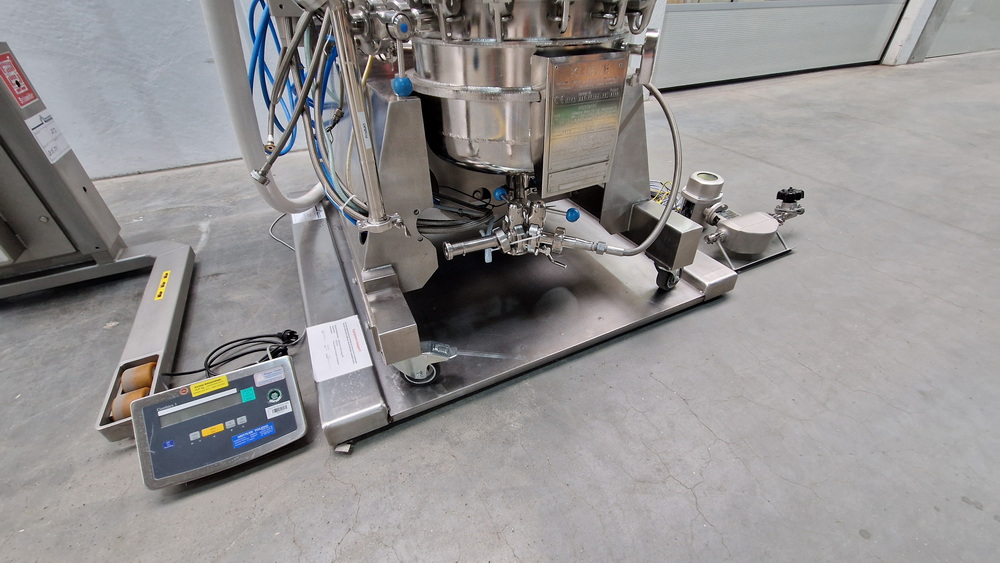

• 600 kg floor scale with Bizerba load cell and Sartorius operator terminal

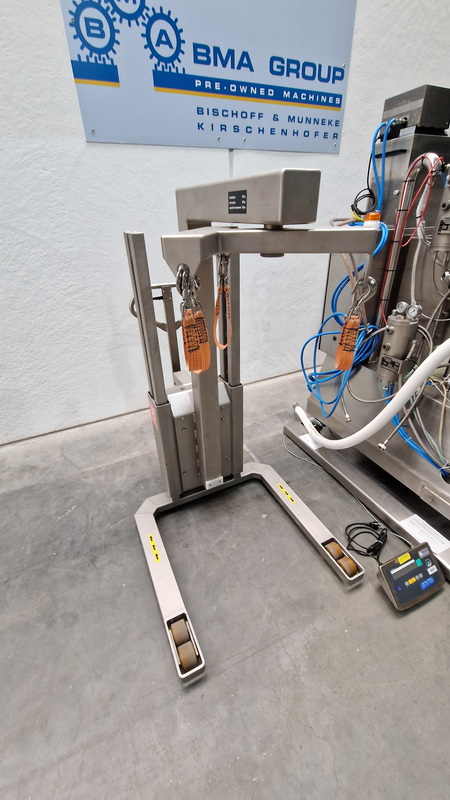

• Mobile lifting device for Schneider Robusto FL 350 containers, load capacity 350 kg

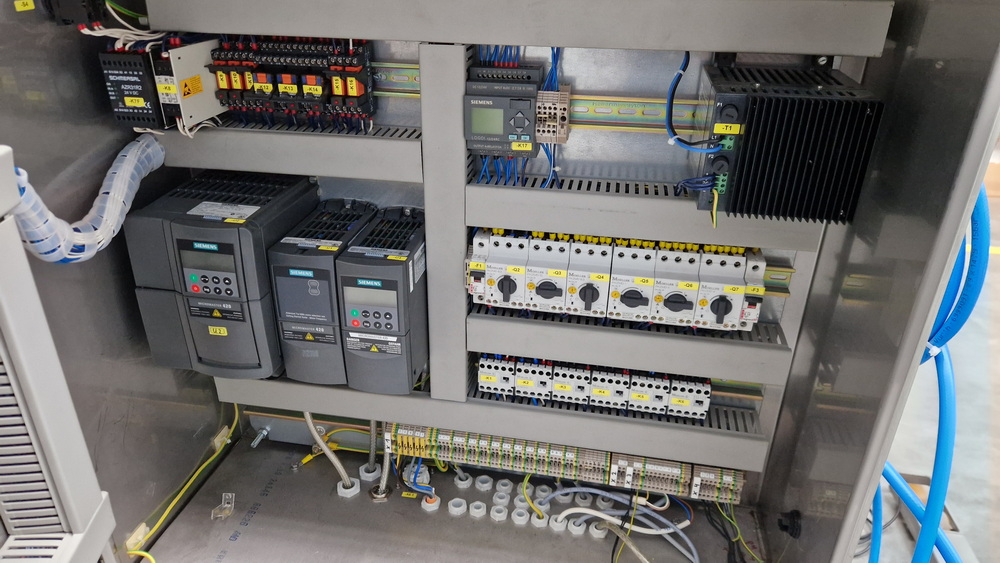

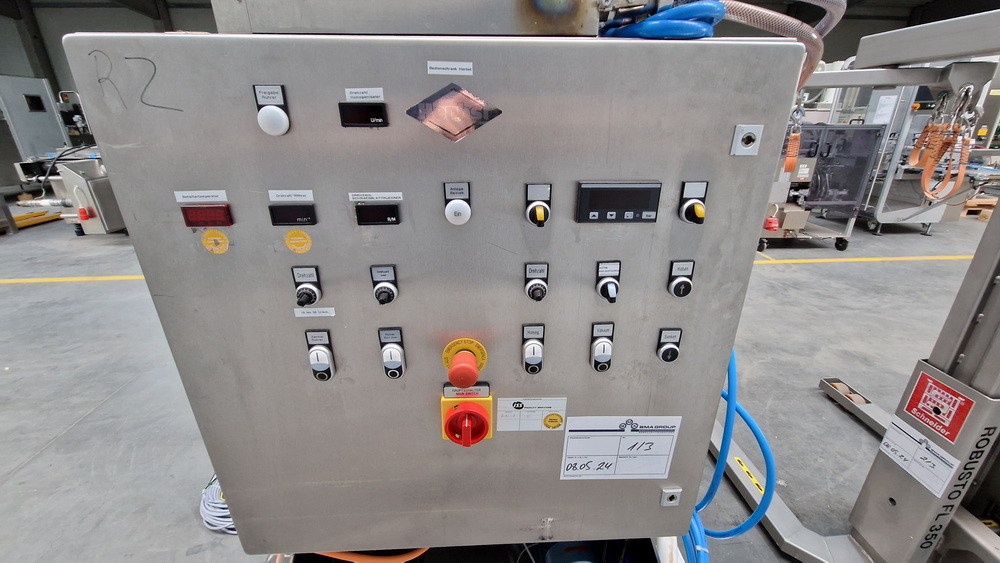

• PLC Siemens Logo
• Various material specifications
• IQ/OQ qualification documentation from 2013
• Drive 400V/50Hz
• Mobile
