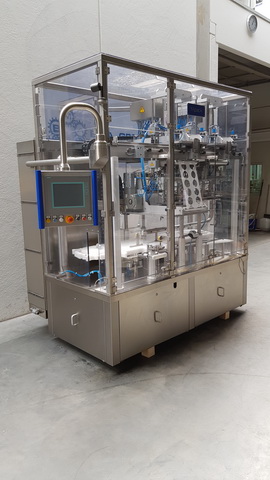

Fillpack L01-DO Sealing machine
Pos.-No.: 02-0668
Pos.-No.: 02-0668

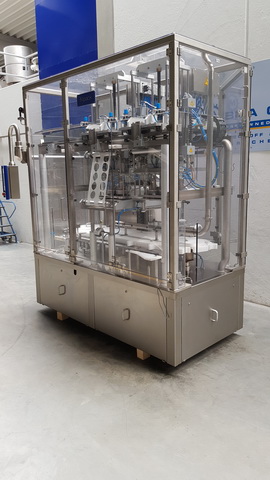

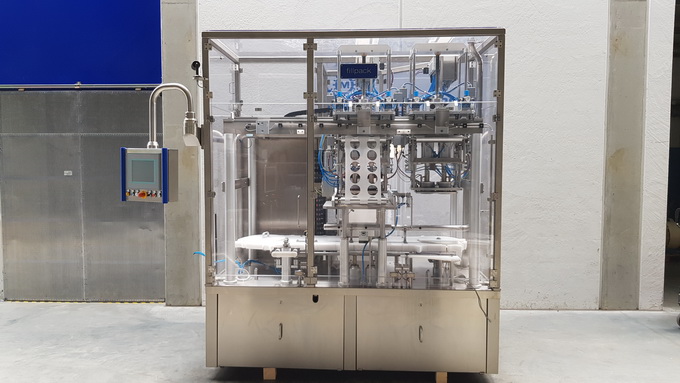

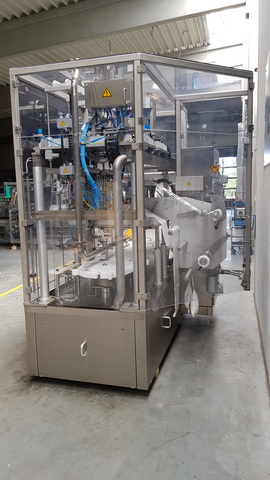

Fillpack L01-DO
Sealing machine

Make: Fillpack
Type: L01-DO
Model: 2010

• Designed for sealing cans with a round plastic film punched from the roll

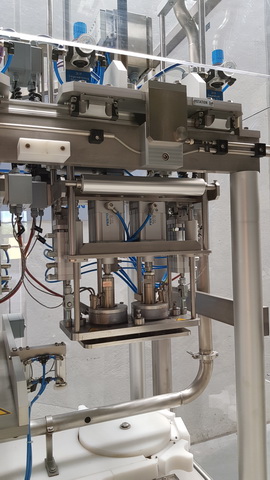

• With double punching station and double sealing station
• Running direction from left to right
• Station adjustment in running direction of the cans

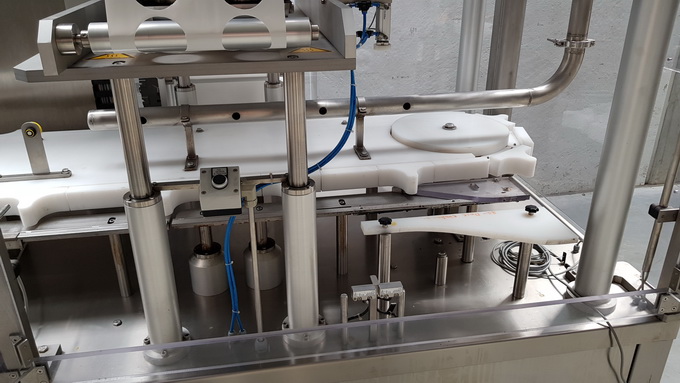

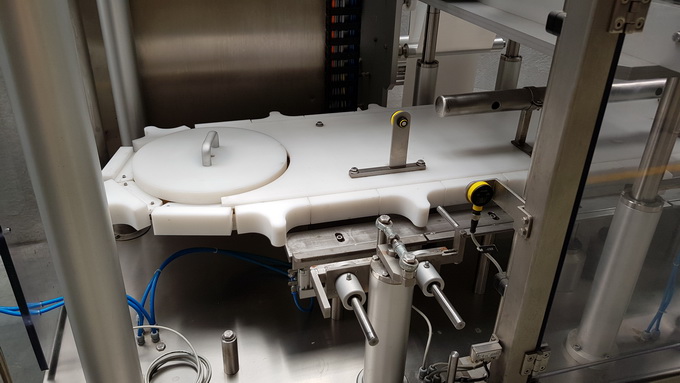

• Prepared to accept a conveyor belt (not included in the scope of delivery) to accommodate cans/bottles in transport buckets provided (not included in the scope of delivery)
• Rationator transport buckets, type RATILIGHT Puck 1 for object sizes 50-1000 ml were used (see pdf).
• Output max. 50-60 objects/min
• Object height appr. 200-400 mm

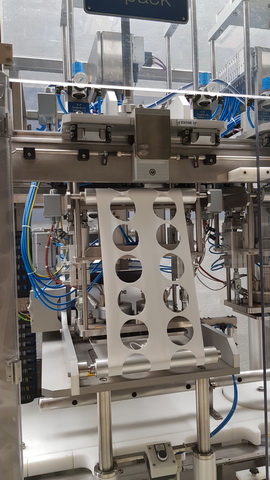

• Punching with punching knives
• Existing die-cutting and sealing formats for film diam. 83.1 mm

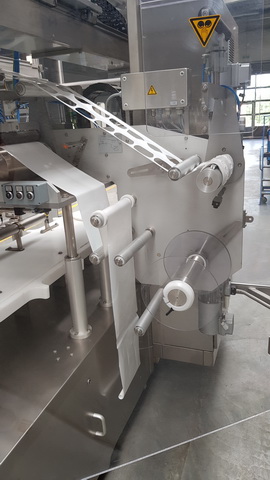

• Foil grid rewinding

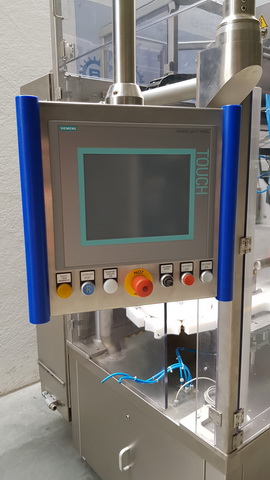

• PLC Siemens S7-300, Siemens Touch monitor
• Drive 400V/50Hz
