Pos.-No.: 02-0727
Pos.-No.: 02-0727

Laboratory filling plant

Make: Xiril, Zinsser Analytic
Type: X75-1-1, IQ 3000 Advanced
Model:
Location: Stapelfeld (Germany)
Description:

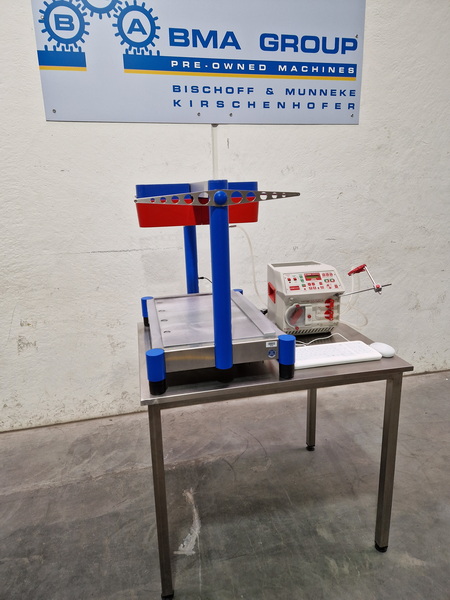

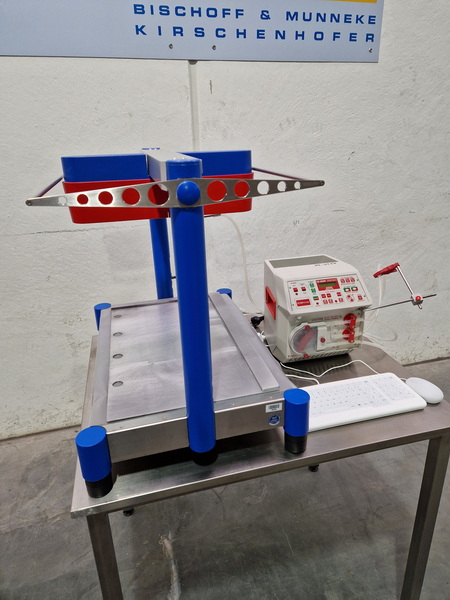

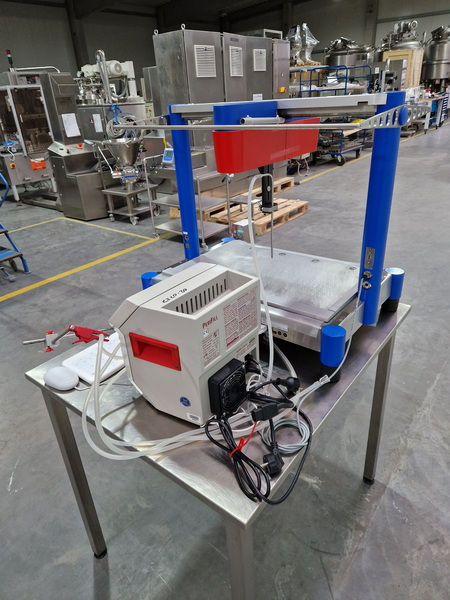

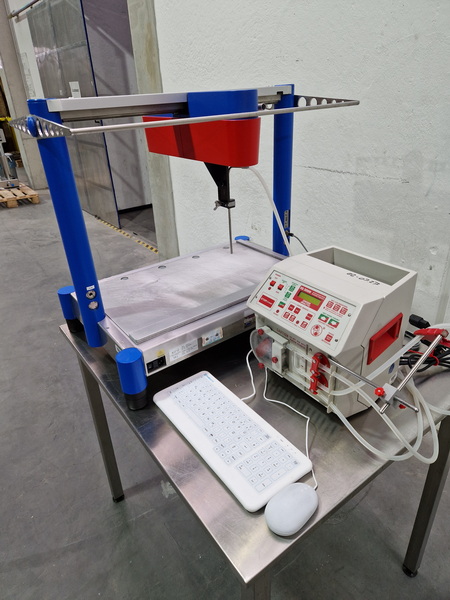

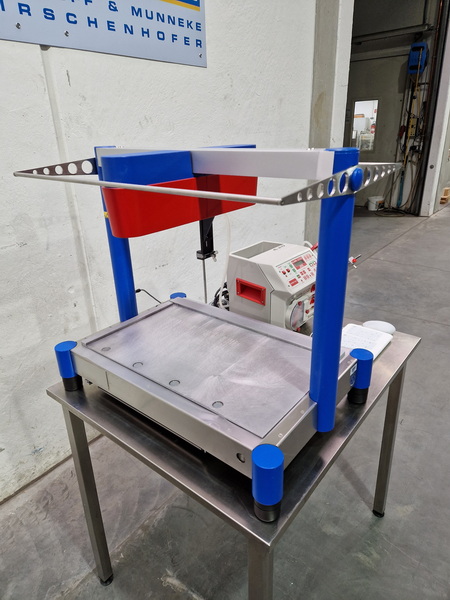

Automatic filling line for small to medium batches of vials, ampoules, tubes in frames or trays, consisting of X, Y-filling robot and peristaltic pump:

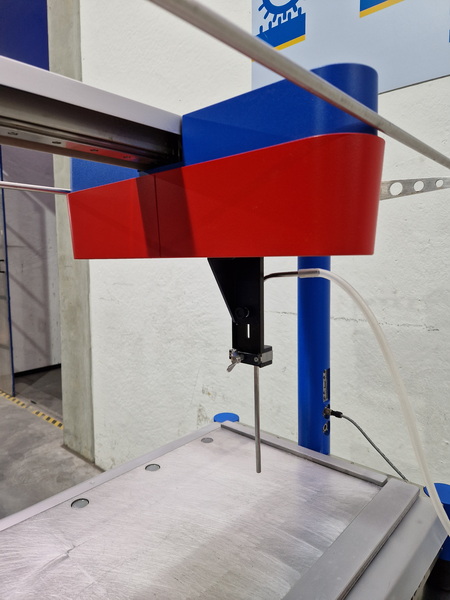

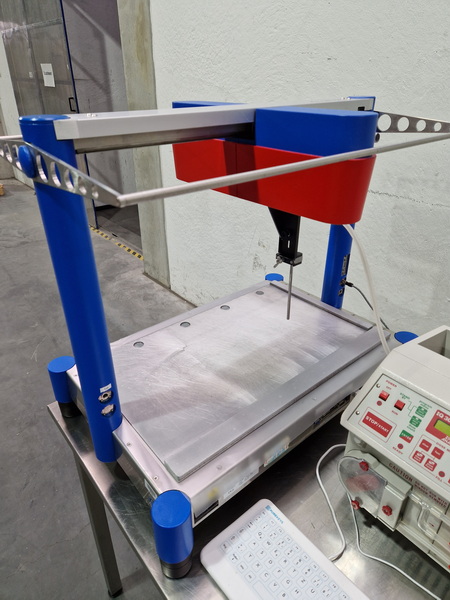

X,Y-filling robot with 1 filling station:
• Filling area width max. 555 mm, depth max. 345 mm
• X, Y positioning max. +/- 0.5 mm
• Object height max. 250 mm
• Operating system Windows XP Professional

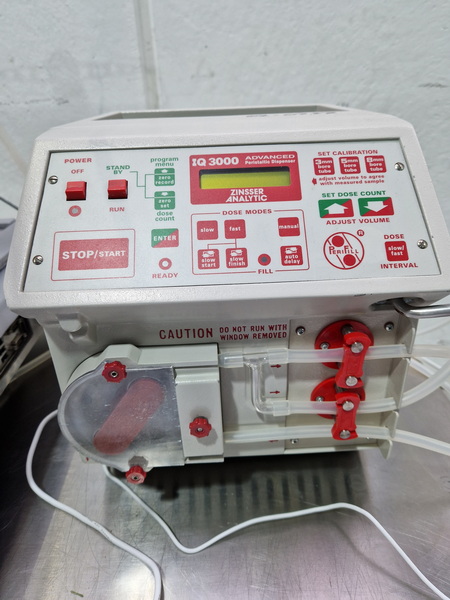

Peristaltic pump:
• Accuracy +/- 0.5
• 2 pump speeds 72+225 rpm
• Dosing 0.5-1000 ml depending on tube-diam.
• Flow rates 2.1-40.7 ml/sec depending on tube-diam.
• Tubing diam. 3, 5, 8 mm
• Manual or automatic mode
• Delay in automatic mode 0.5-9.5 sec in 0.5 sec steps
• Recirculation to dispensing vessel

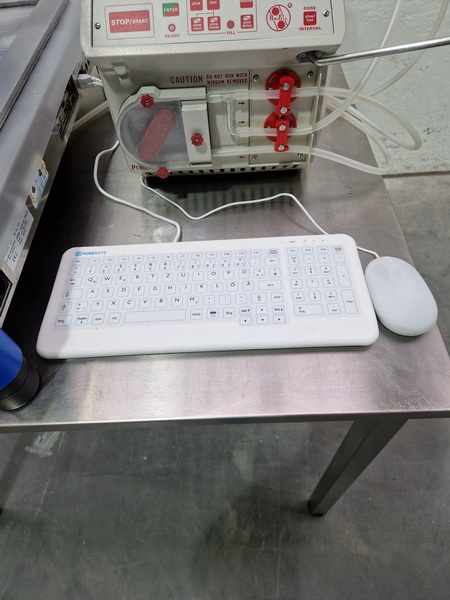

• With keyboard and mouse, without monitor, without undertable
• Drive 240V/50/60Hz
