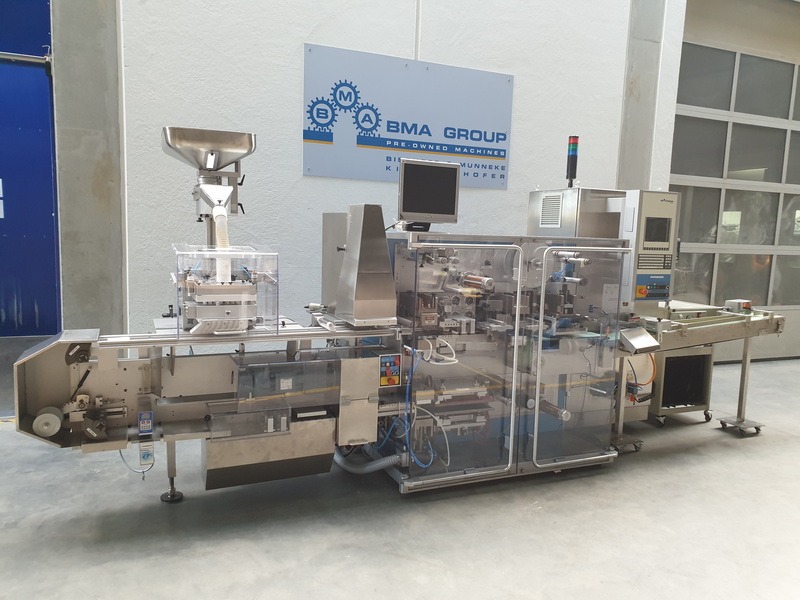

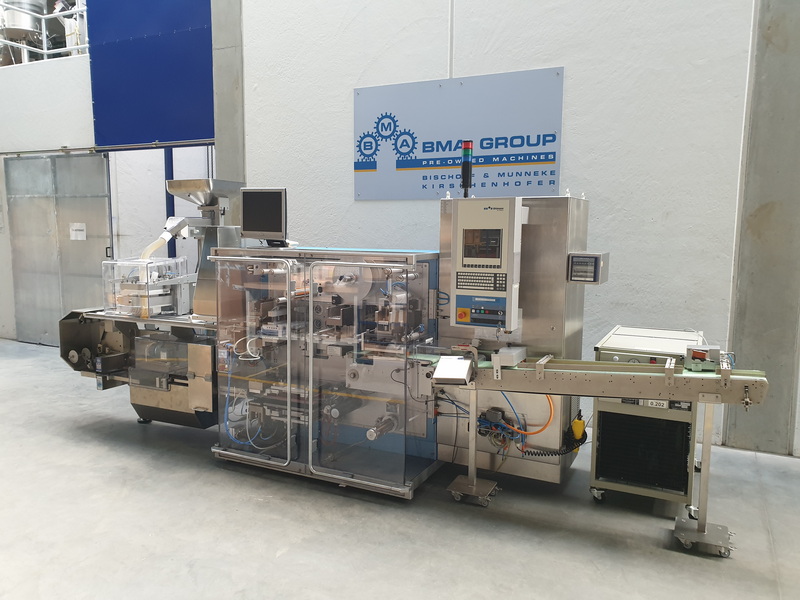

Uhlmann UPS 300
Blister machine

Set up for ALU/PVC and ALU/ALU operation
• Format range blister (W x L) min 50 x 22 mm / max. 156 x 115 mm
• Drawing depth max. 12 mm
• Output 15 - 50 forming cycles/min
• Transport length 42-115 mm
• Film width 100-168 mm
• Forming film Ø max. 450 mm, core Ø 76 mm (PVC) / 150 mm (ALU), pneumatic clamped

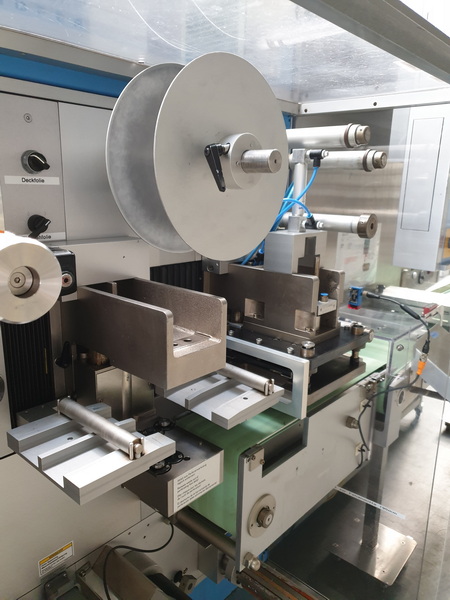

• Cover film-Ø max. 240mm, core-Ø 76 mm, pneumatic clamped
• Adhesive bonding point detection for sealing and forming film

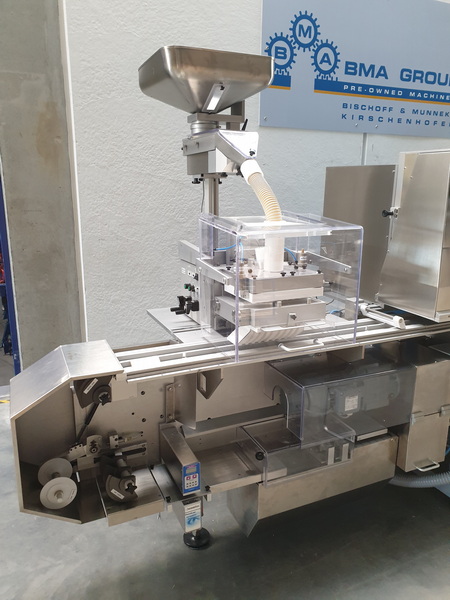

• Product feed by deticated feeder Uhlmann SimTab 2.1 for tablets/capsules
• Forward feed after forming and sealing station

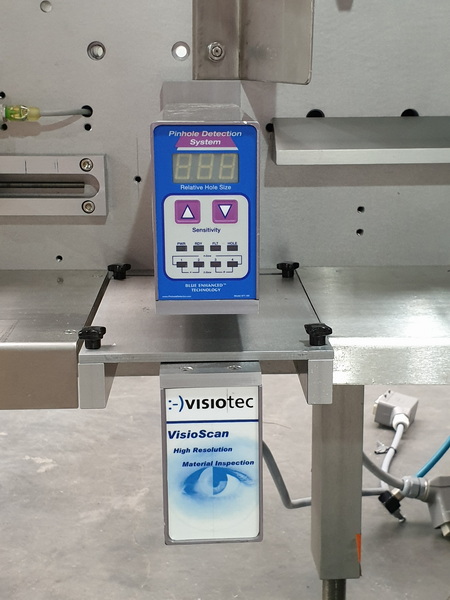

• Tear and pore control for forme film and cover film Visiotec VisioScan MT-160/200

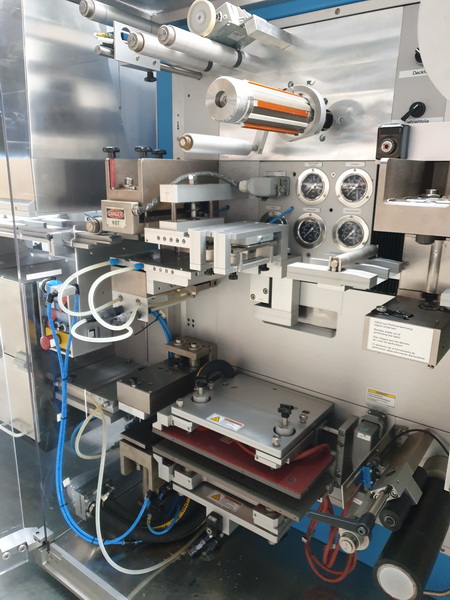

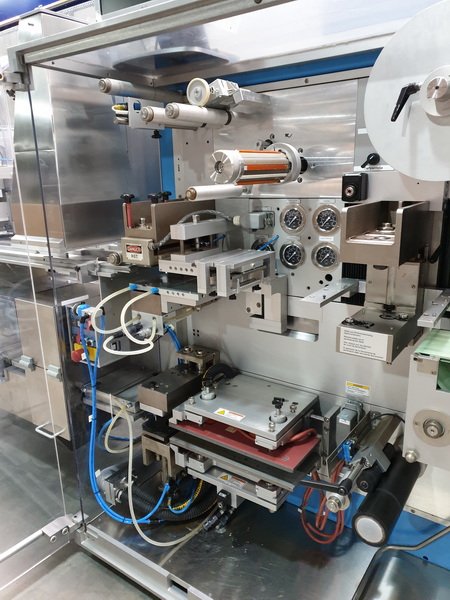

• Forming station with compressed air for PVC forming film
• Heating station with extraction for the use of PVDC film
• Mechanical forming station for ALU forming film
• Filling control VisioChrom color with separate screen
• Perforating station
• Chiller Autotherm AKL 44

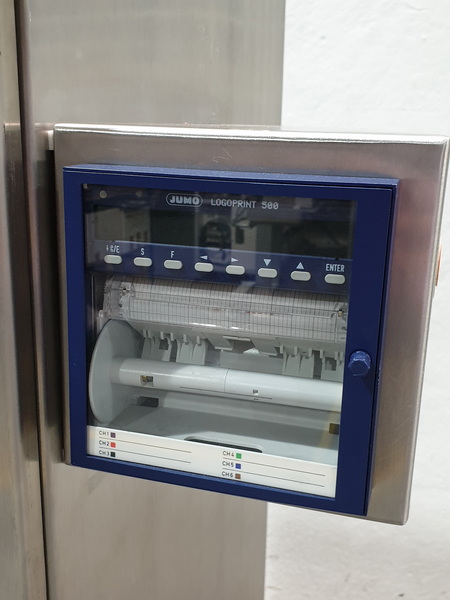

• 6-channel printing recorder Jumo Logoprint 500

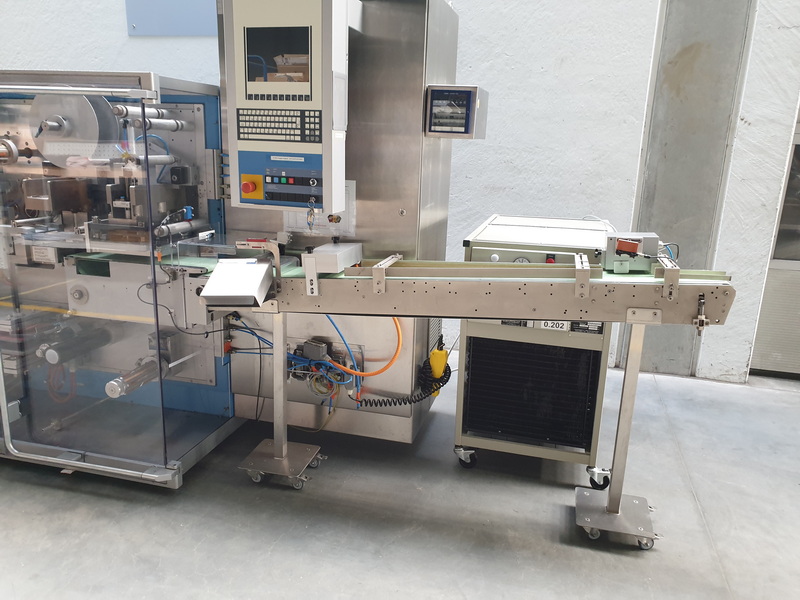

• Discharge conveyor with reject for bad blister

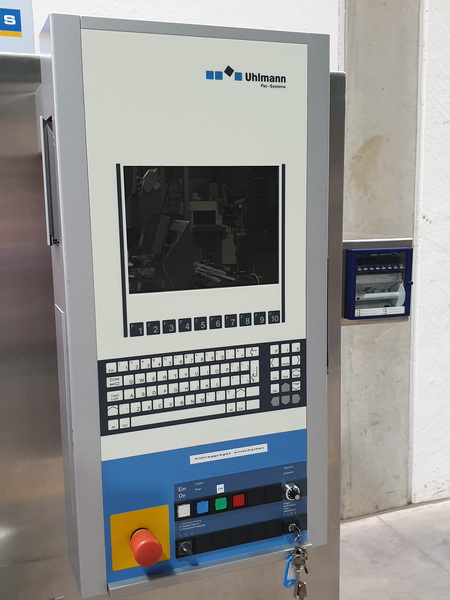

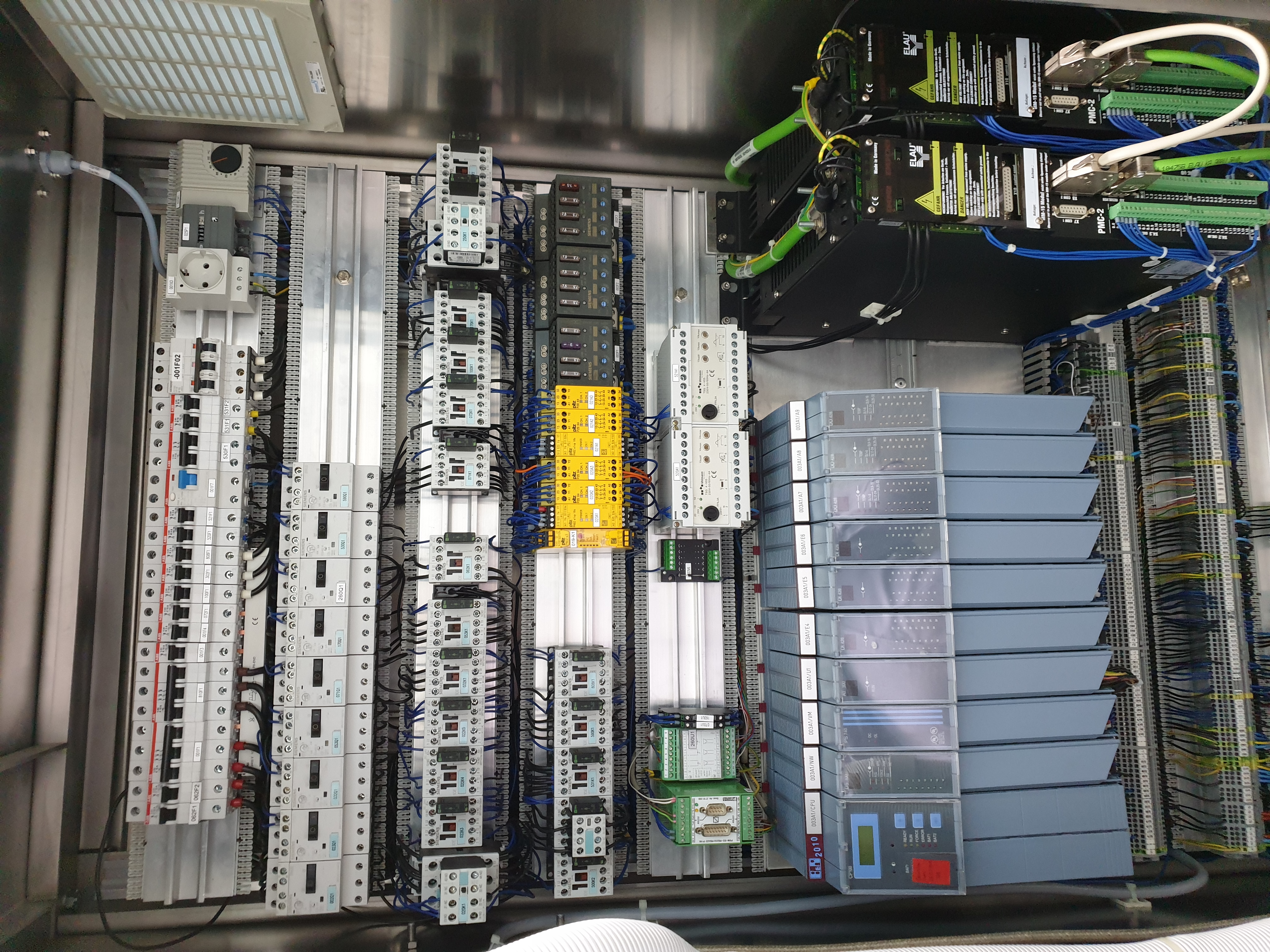

• Control rebuild 2009 to PLC B+R 2010 CP 100
• 8469 operating hours
• Without format parts
• Drive 400V/50Hz
• IQ/OQ/DQ documentation
