Pos.-No.: 04-0247
Pos.-No.: 04-0247

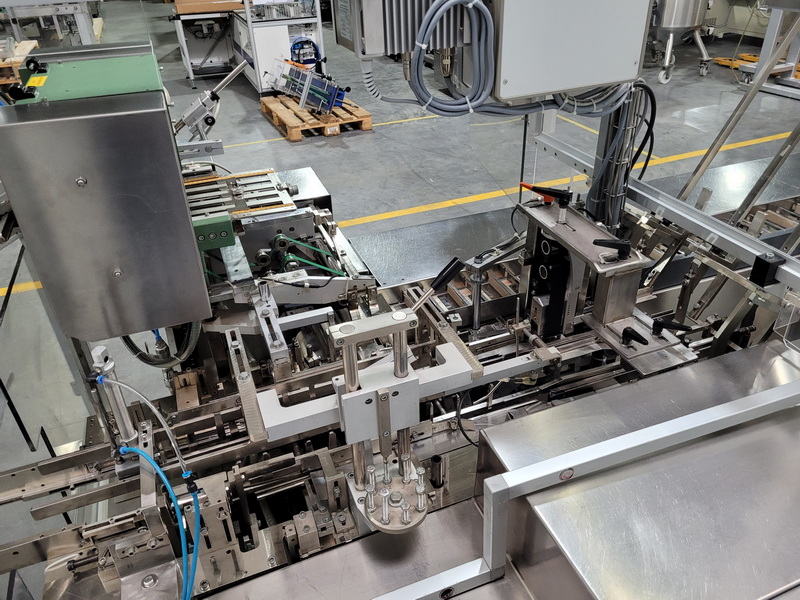

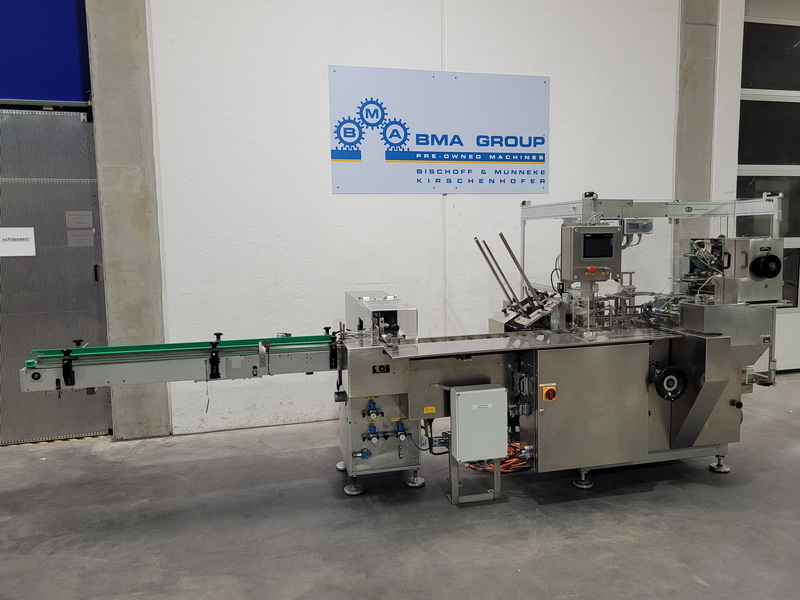

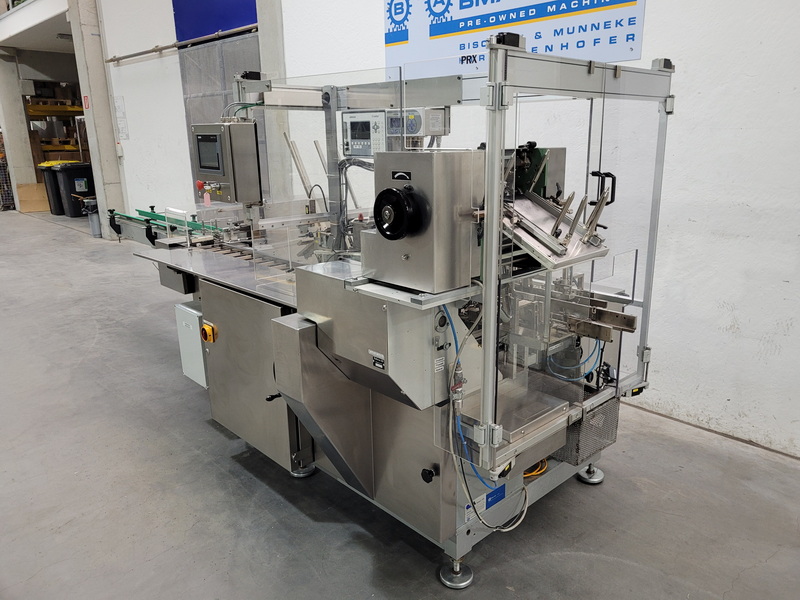

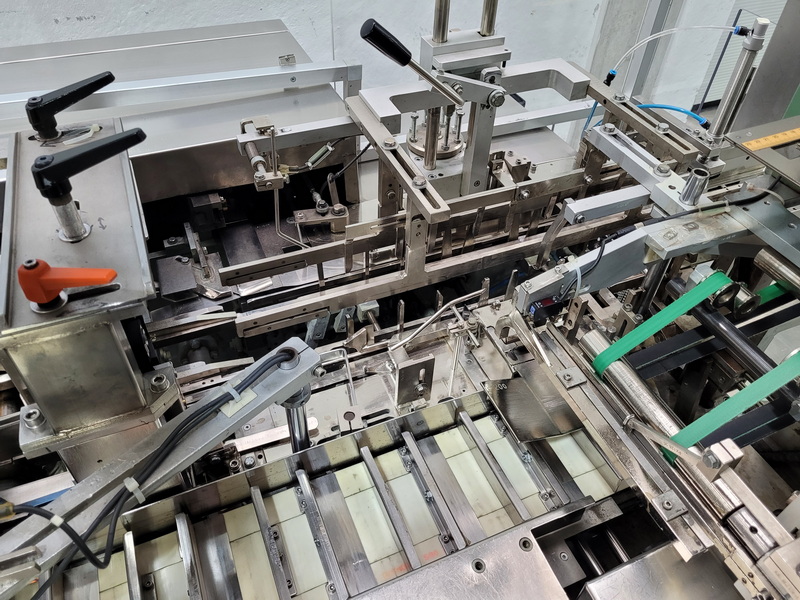

Cartoner (bottle)

Make: CAM
Type: PRX
Model: 1992
Location: Stapelfeld (Germany)
Description:

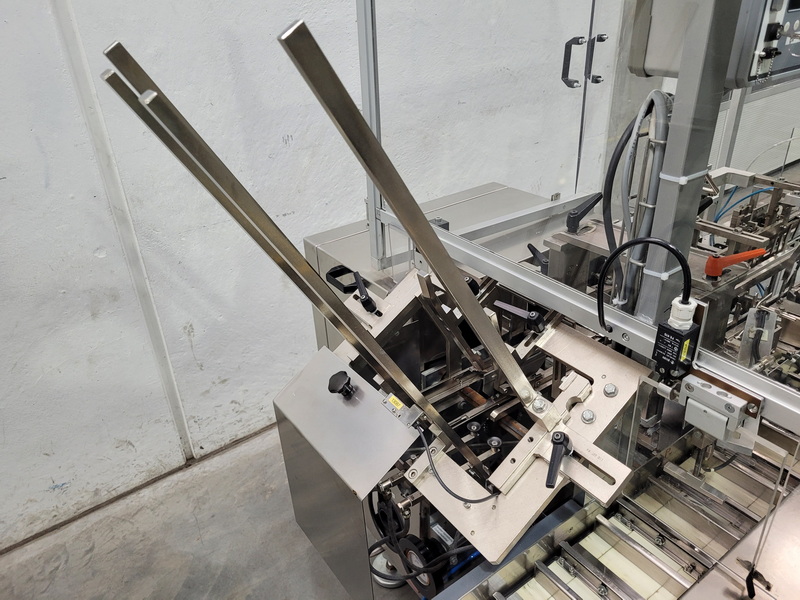

• Format range folding box (5 inch) w 15-90, h 12-70, l 50-200 mm
• Output 20-120 folding boxes/min, clocked motion

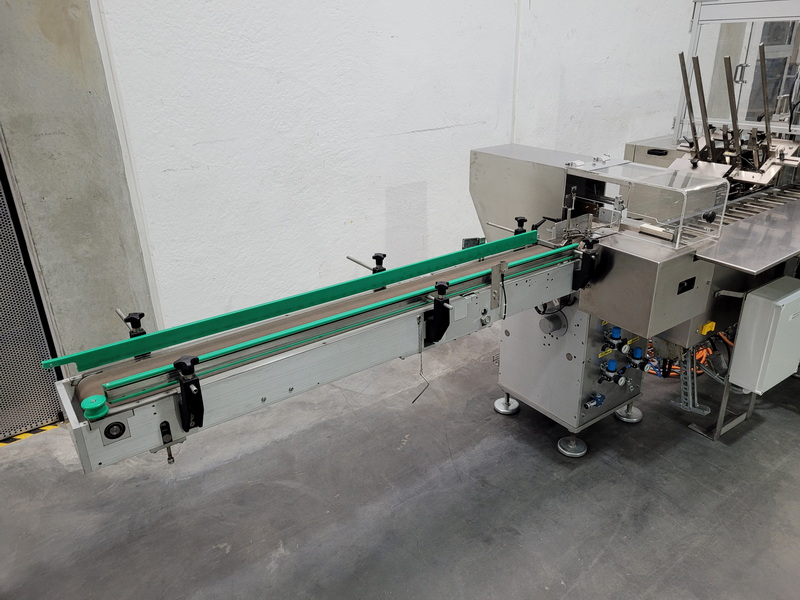

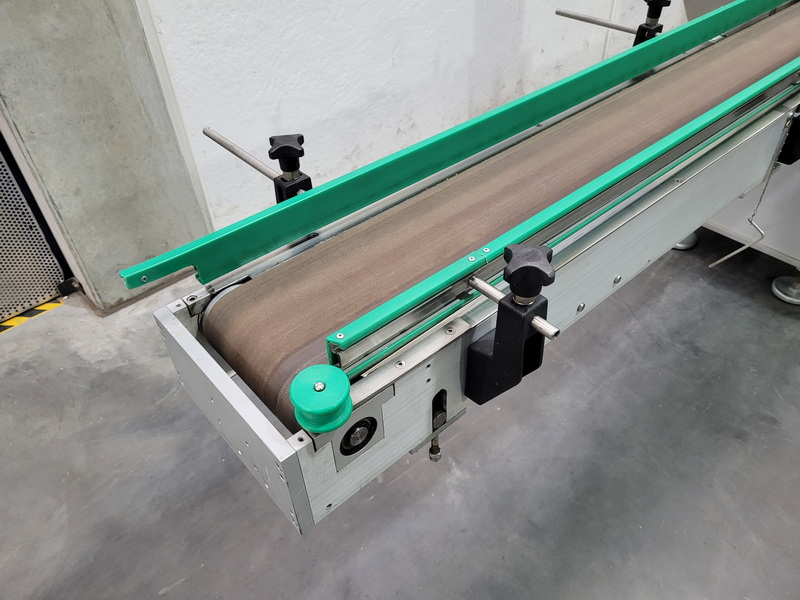

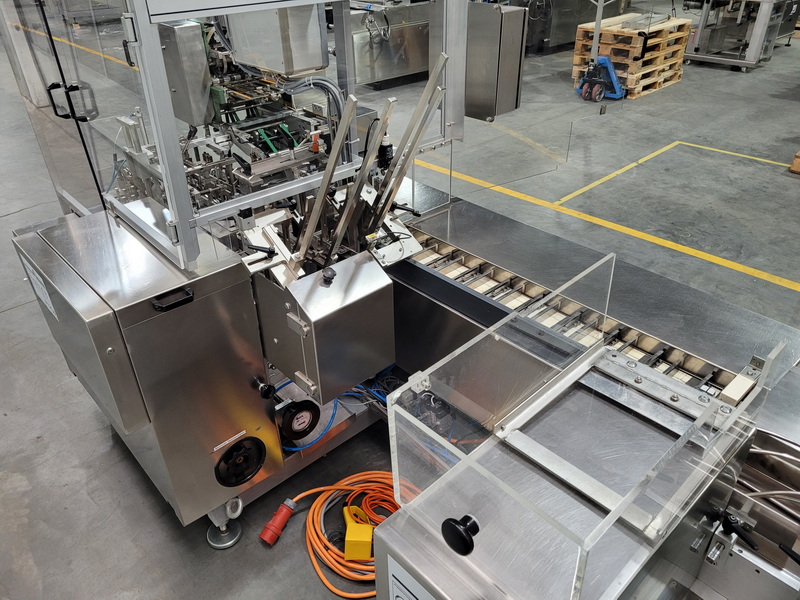

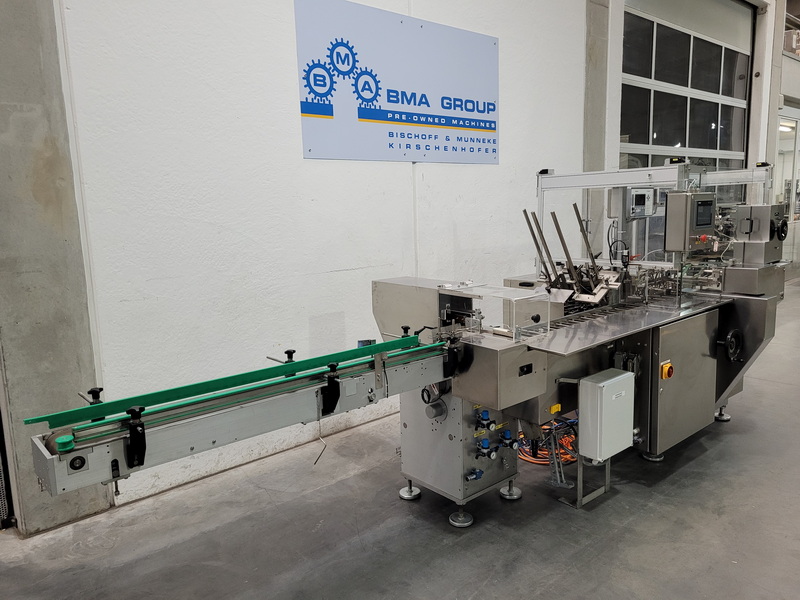

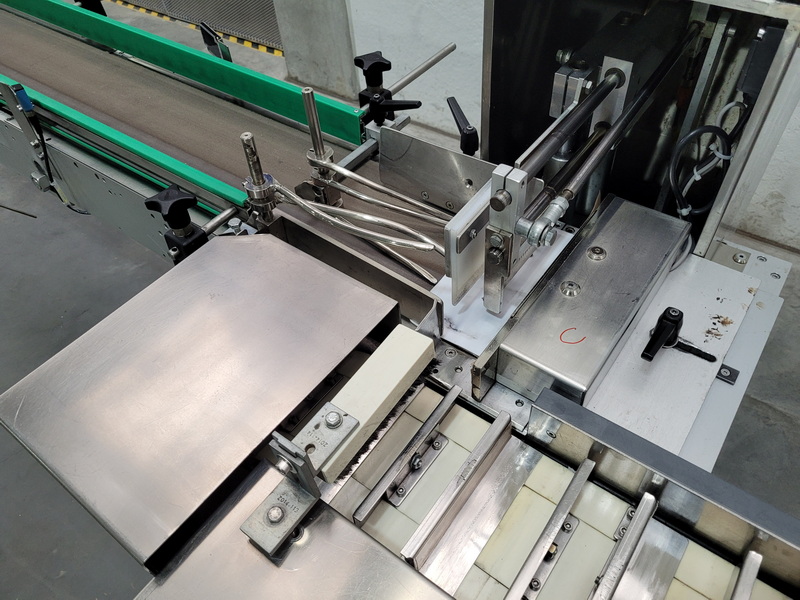

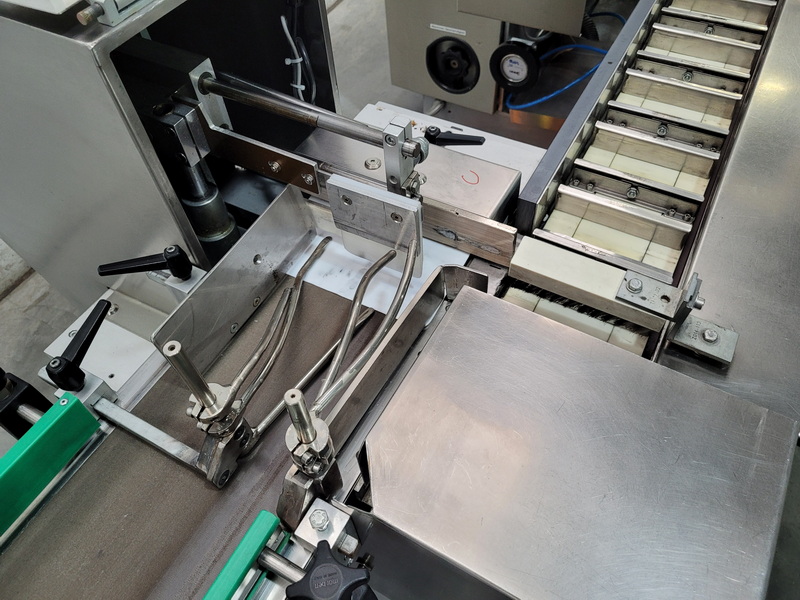

• Product infeed conveyor CAM 502 H for cylindrical products (diam. 18-67 mm, h 45-150 mm) and rectangular products (w 15-117, h 15-67, l 45-150 mm), equipped for bottles with bottle-transfer chicane and pusher in product chain

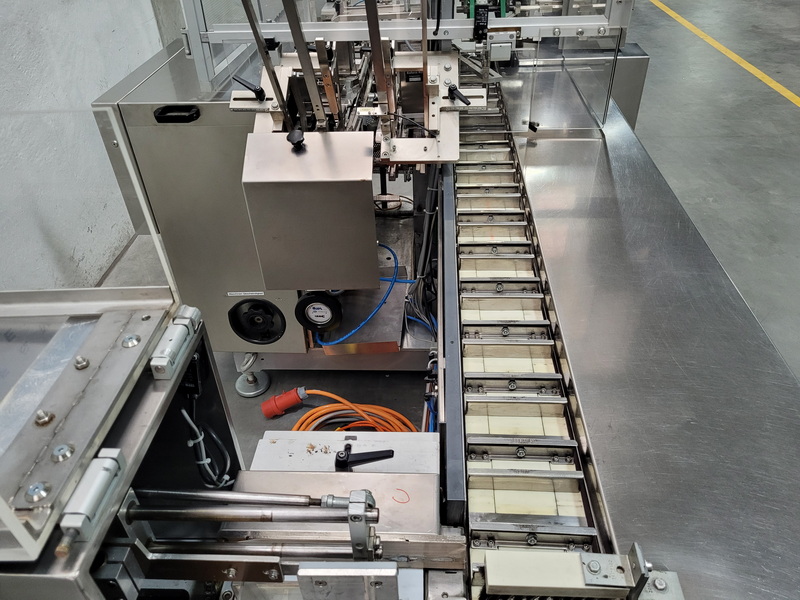

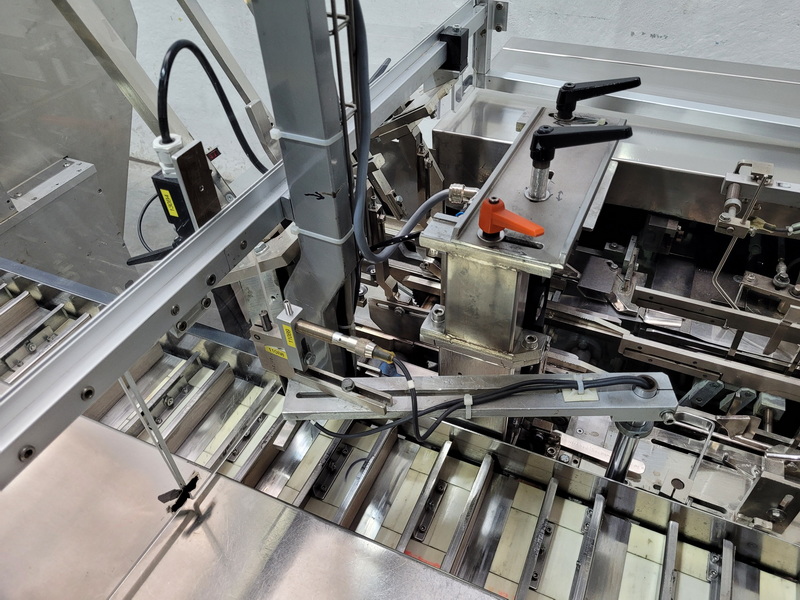

• Centrally adjustable product chain
• Closure double-sided offset or equilateral tuck-in flaps

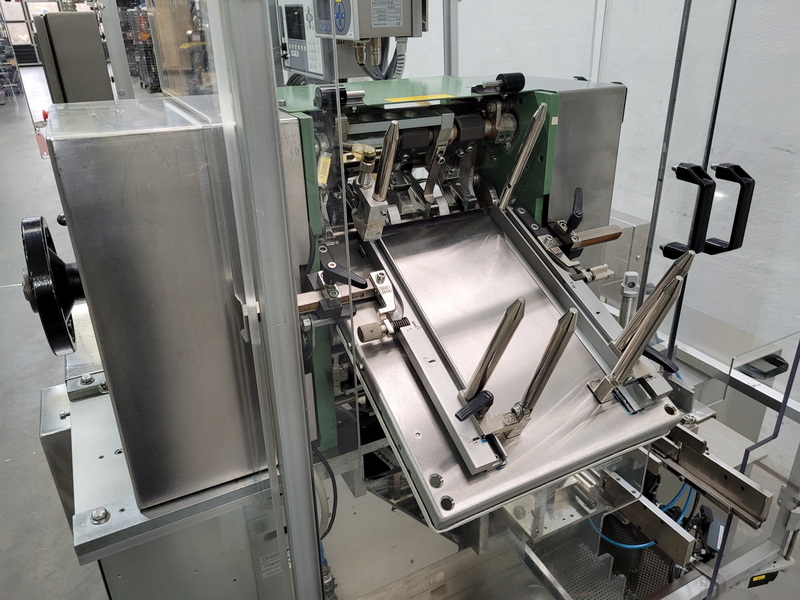

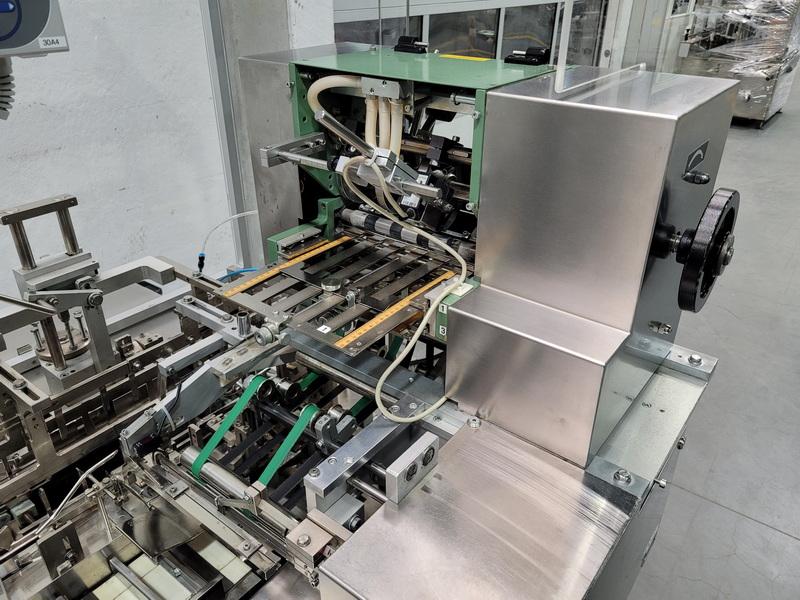

• Leaflet folding and inserting machine from magazine GUK FA21/4, Cartonac 91

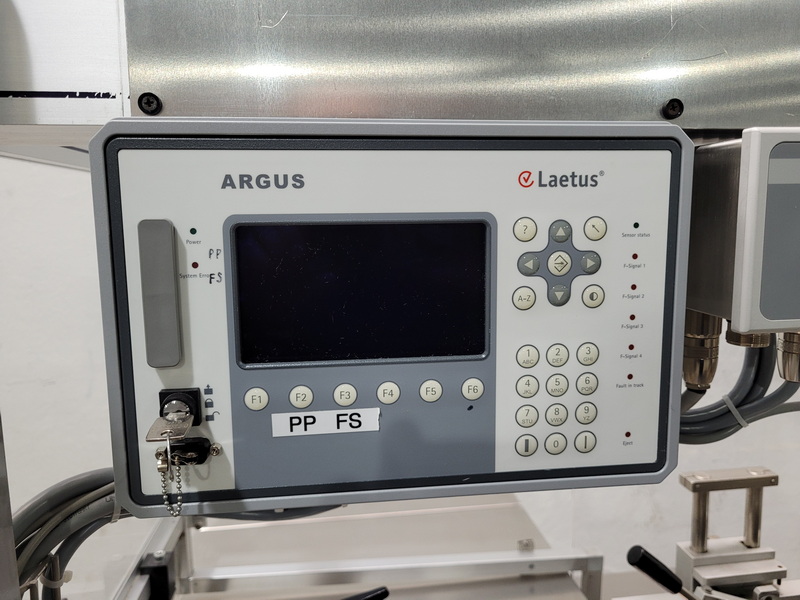

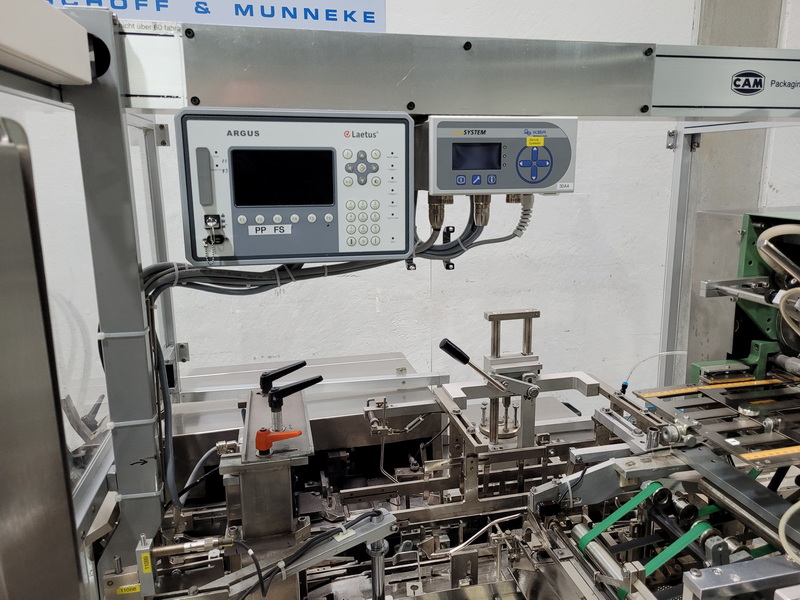

• Code reading Argus 6012 (1x brochure, 1x folding box, 1x brochure presence in folding box)

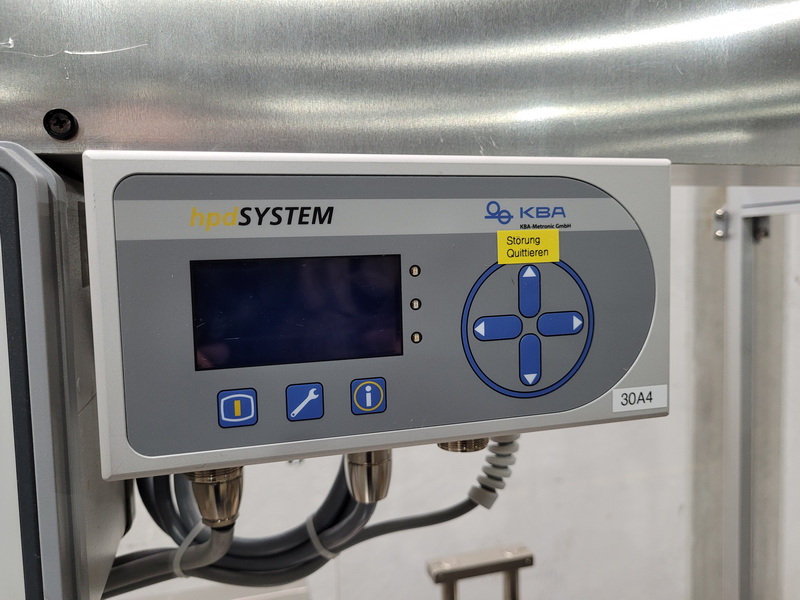

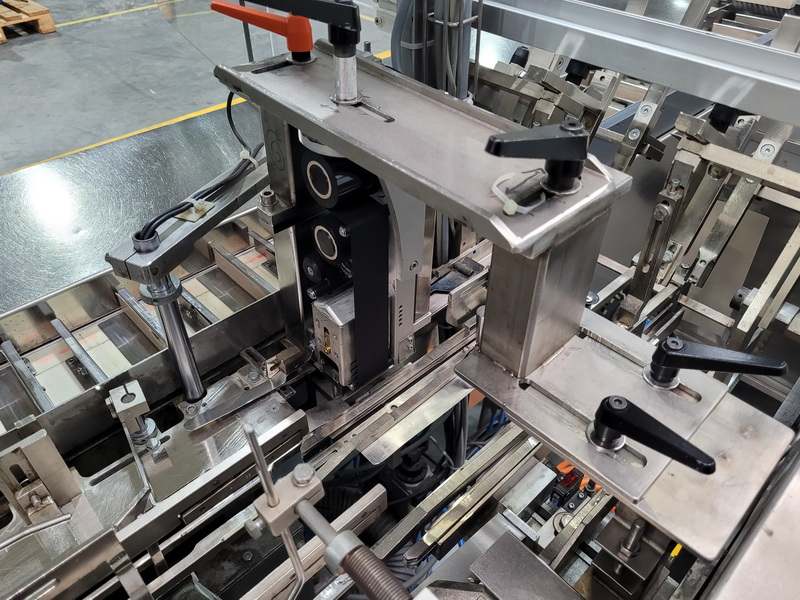

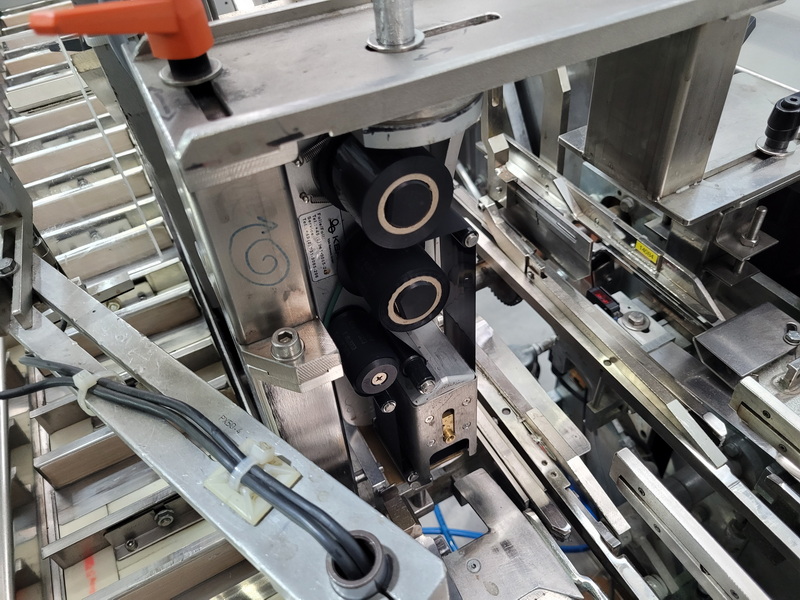

• 1 KBA-Metronic hot-stamping unit (without embossing stick), for flap insert side, retrofitted 2018
• Bad ejection
• Vacuum generator

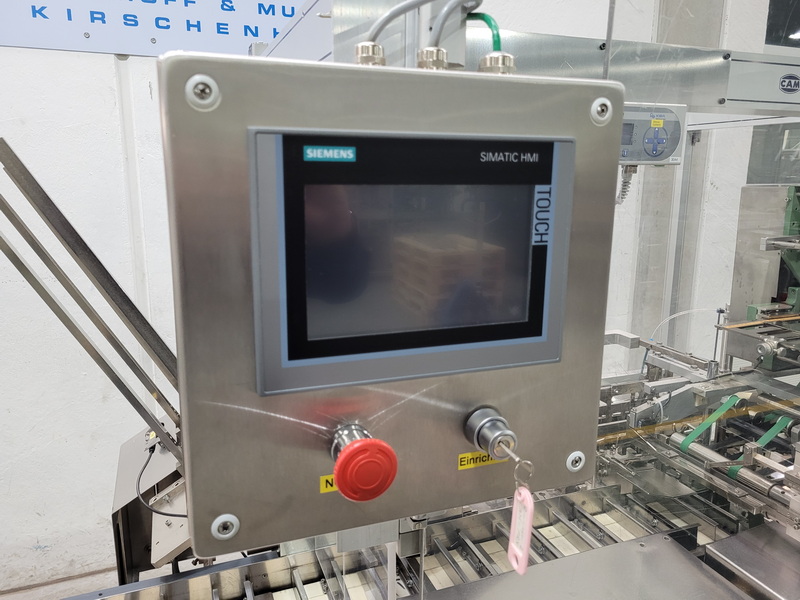

• HMI/IPC touch panel Siemens Simatic TP700 Comfort, Windows CE 6.0, IO system Siemens ET 200S, user administration, retrofitted 2012
• Jog button

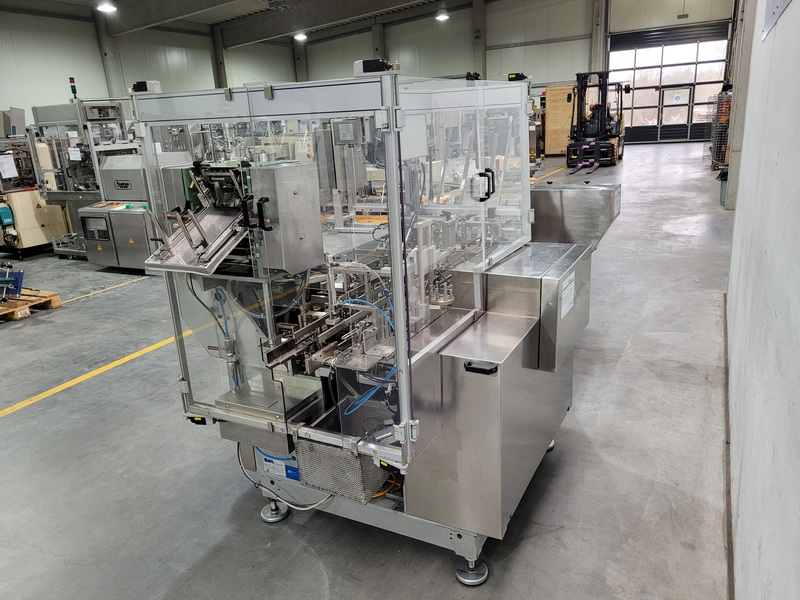

• Enclosure with safety switches
• Existing format parts for bottles: diam. 56 x h 147 mm (200 ml), diam. 46 x h 120 mm (100 ml), diam. 38 x h 96 mm (50 ml)
• Various spare parts, e.g. new drive motor
• Connection 400V/50 Hz
