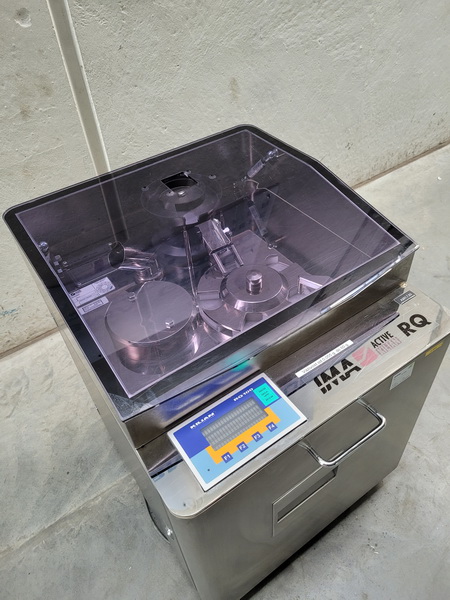

IMA Kilian RQ 100/4 Tablet check unit
Pos.-No.: 06-0396
Pos.-No.: 06-0396

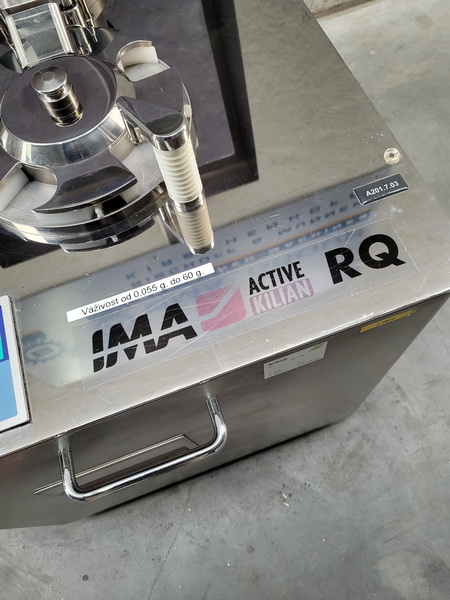

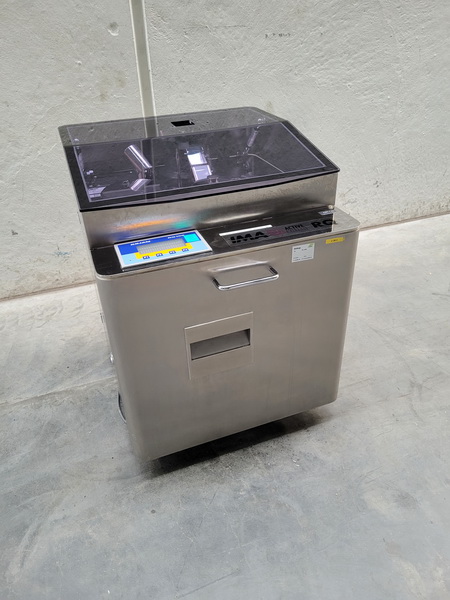

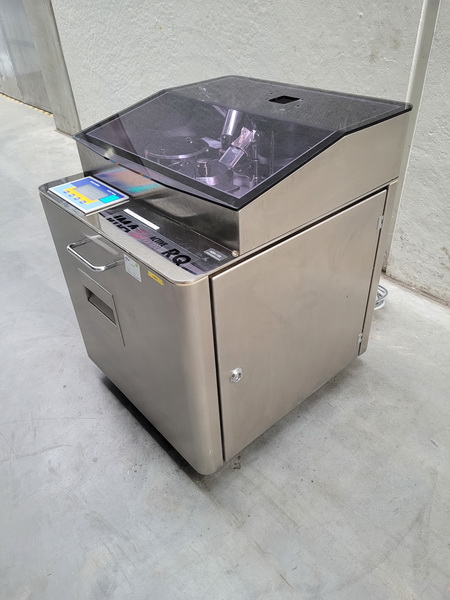

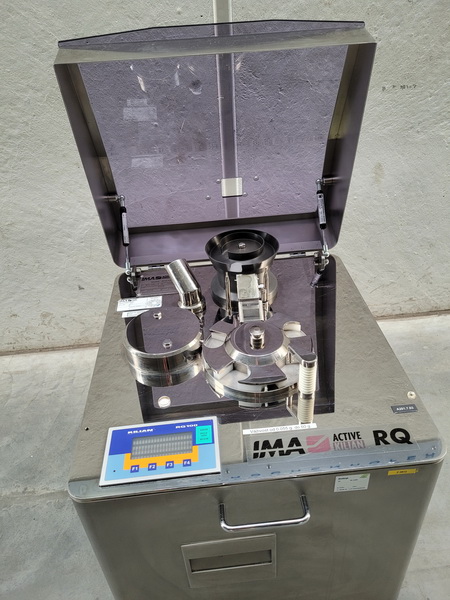

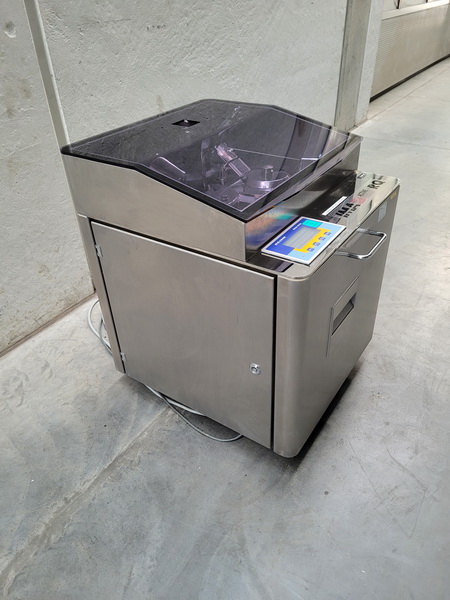

IMA Kilian RQ 100/4
Tablet check unit

Make: IMA Kilian
Type: RQ 100/4
Model: 2010
Description:

• For measuring of weight, thickness, hardness and diameter for connection to Kilian tablet presses or as stand-alone
• Weight measurement max. 60 g, d = 0.1 mg, accuracy +/- 0.5 mg
• Thickness measurement max. 12.5 mm, d = 0.01 mm, accuracy +/- 0.05 mm
• Hardness measurement nominal force 500 N, max. breaking force 600 N, resolution 1 N, accuracy +/- 3 N
• Diameter measurement 3 - 25 mm

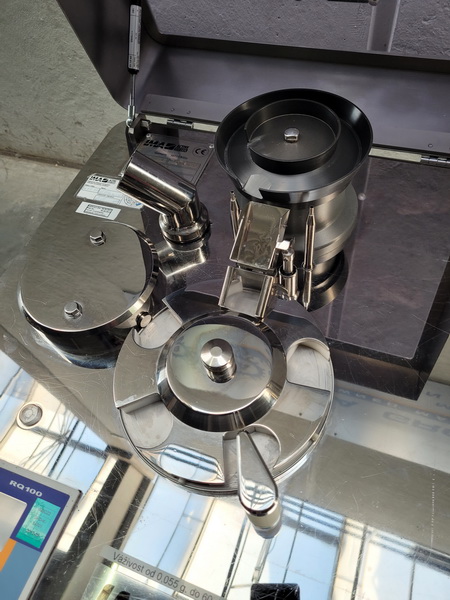

• Tablet feed automatically from a Kilian tablet press (feeding device not included) or manual tablet input
• The recorded data is transmitted to the tablet press, the control of the tablet press then regulates according to the data
• Mobile
• Connection 230V/50/60Hz
