Pos.-No.: 06-0397
Pos.-No.: 06-0397

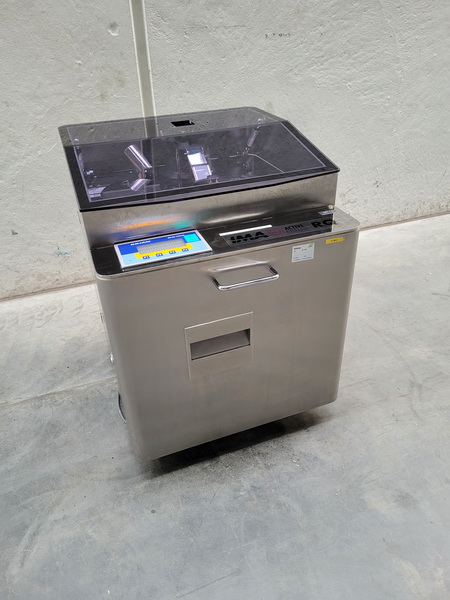

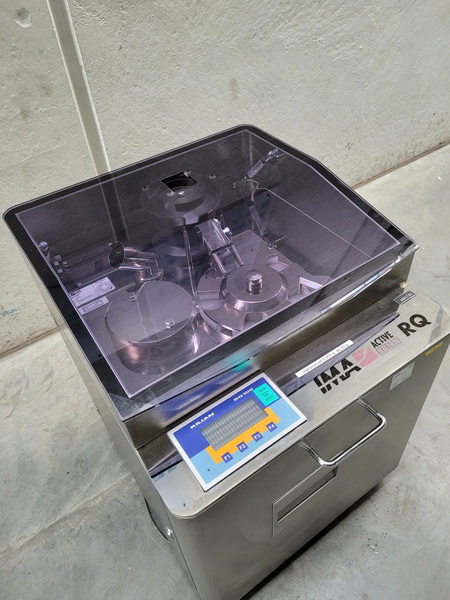

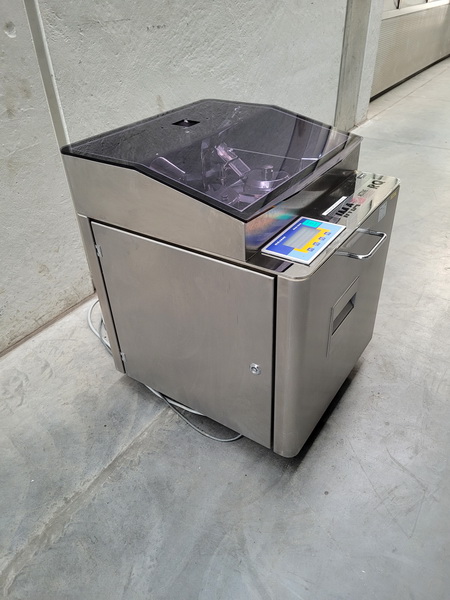

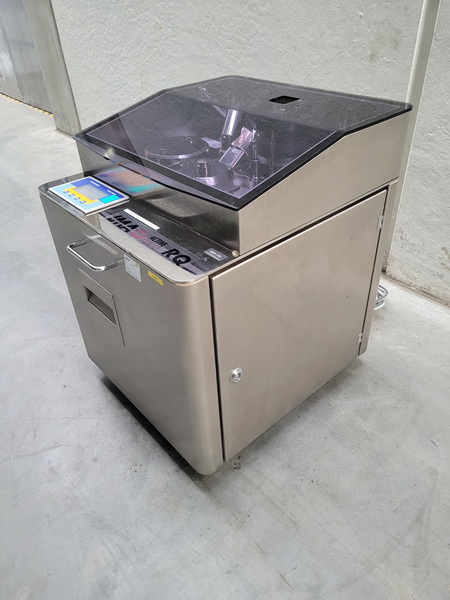

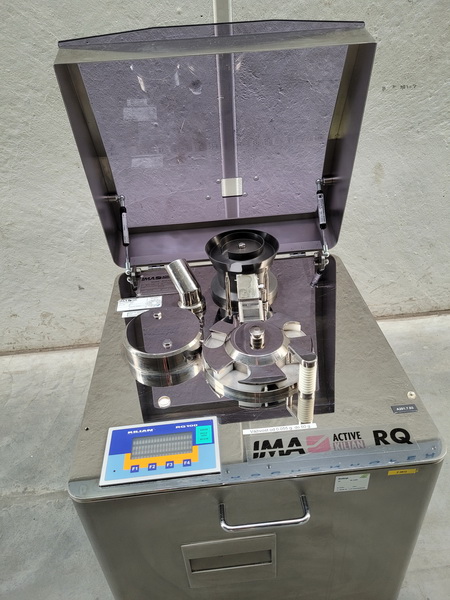

Tablet check unit

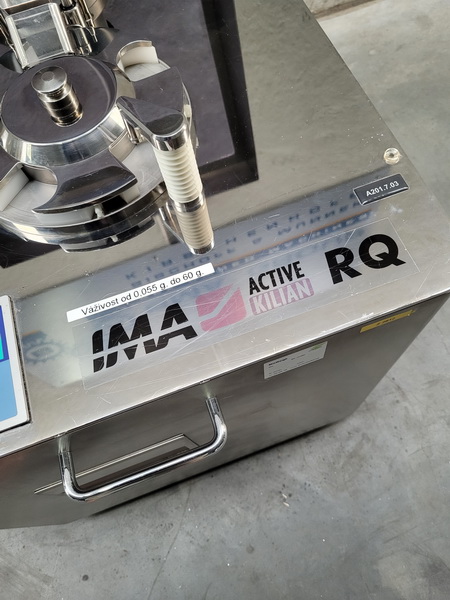

Make: IMA/Kilian

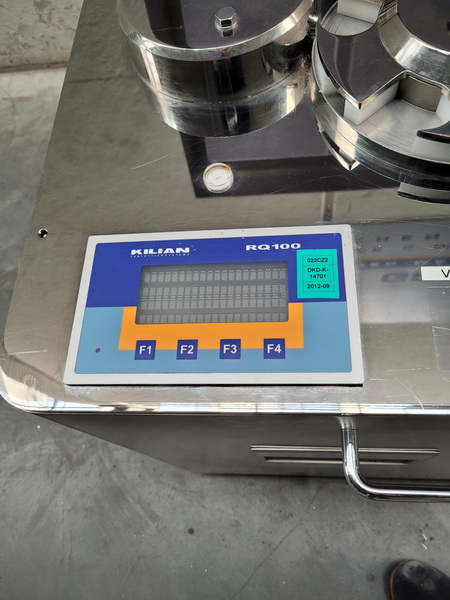

Type: RQ 100-4
Model: 2010
Location: Stapelfeld (Germany)
Description:

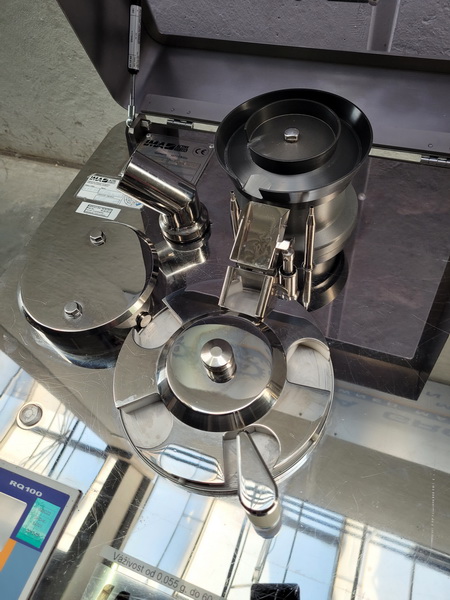

• For measuring of weight, thickness, hardness and diameter for connection to Kilian tablet presses
• Weight measurement max. 60 g, d = 0.1 mg, accuracy +/- 0.5 mg
• Thickness measurement max. 12.5 mm, d = 0.01 mm, accuracy +/- 0.05 mm
• Hardness measurement nominal force 500 N, max. breaking force 600 N, resolution 1 N, accuracy +/- 3 N
• Diameter measurement 3 - 25 mm
• Tablet feed automatically from a Kilian tablet press (feeding device not included) or manual tablet input
• The recorded data is transmitted to the tablet press, the control of the tablet press then regulates according to the data
• Mobile
• Connection 230V/50/60Hz
