Pos.-No.: 13-0105
Pos.-No.: 13-0105

Blister packing line

Make: Uhlmann
Type: UPS 1030 MTI + C 2205
Model: 2003 / 2014
Description:

• Blister packaging line consisting of: Thermoforming blister machine Uhlmann UPS 1030 MTI and folding cartoning machine Uhlmann C 2205. Etensive maintenance in 2014 by the manufacturer.

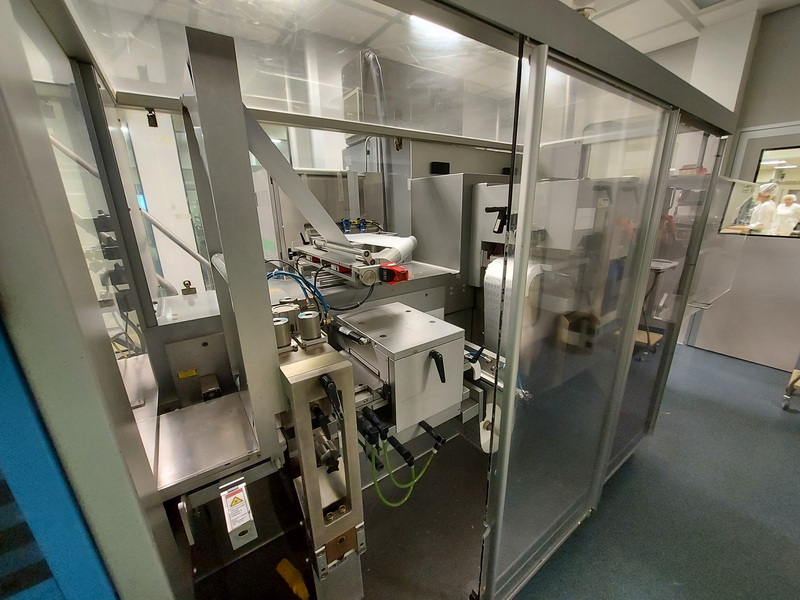

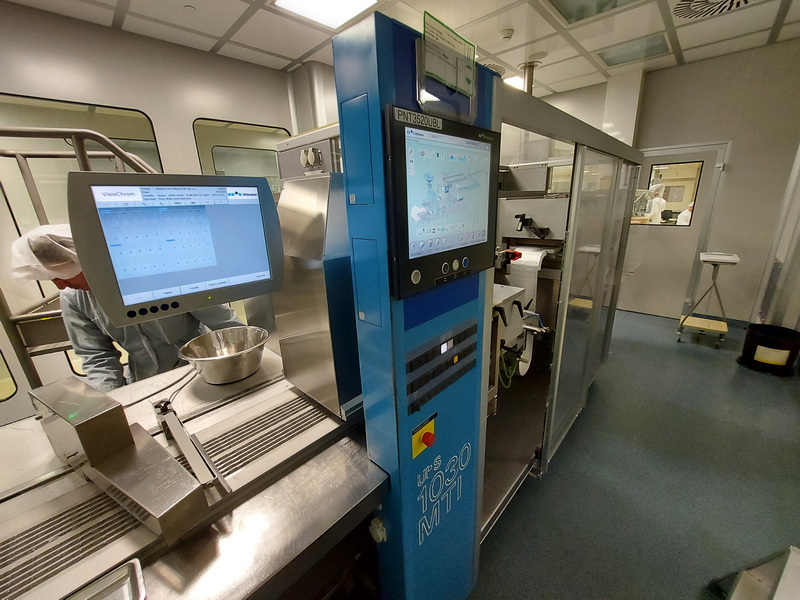

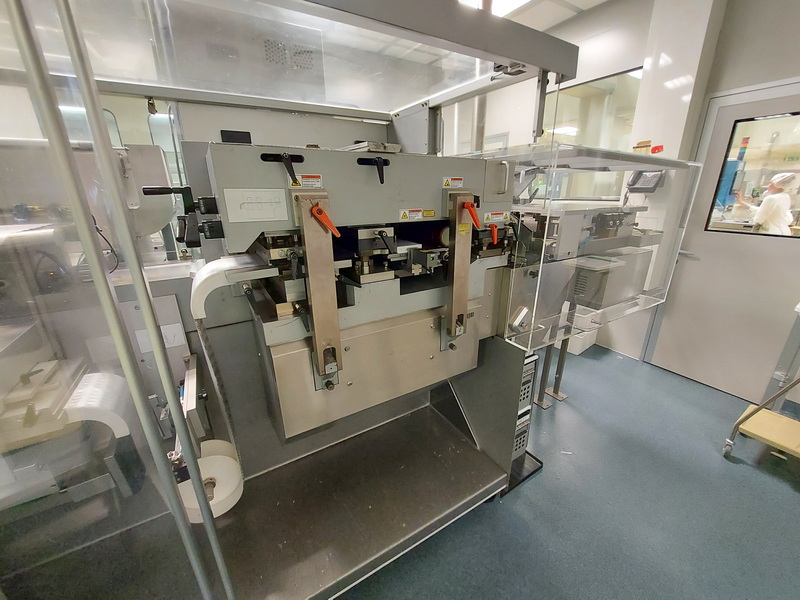

Thermoforming blister machine UPS 1030 MTI (multi-cycle intermittend):
• Set up for ALU/PVC-PVDC-PP aclar operation
• Output max. 600 blisters/min
• Feed rate max. 144 mm
• Blister width max. 255 mm
• Drawing depth max. 10 mm
• Roller stand

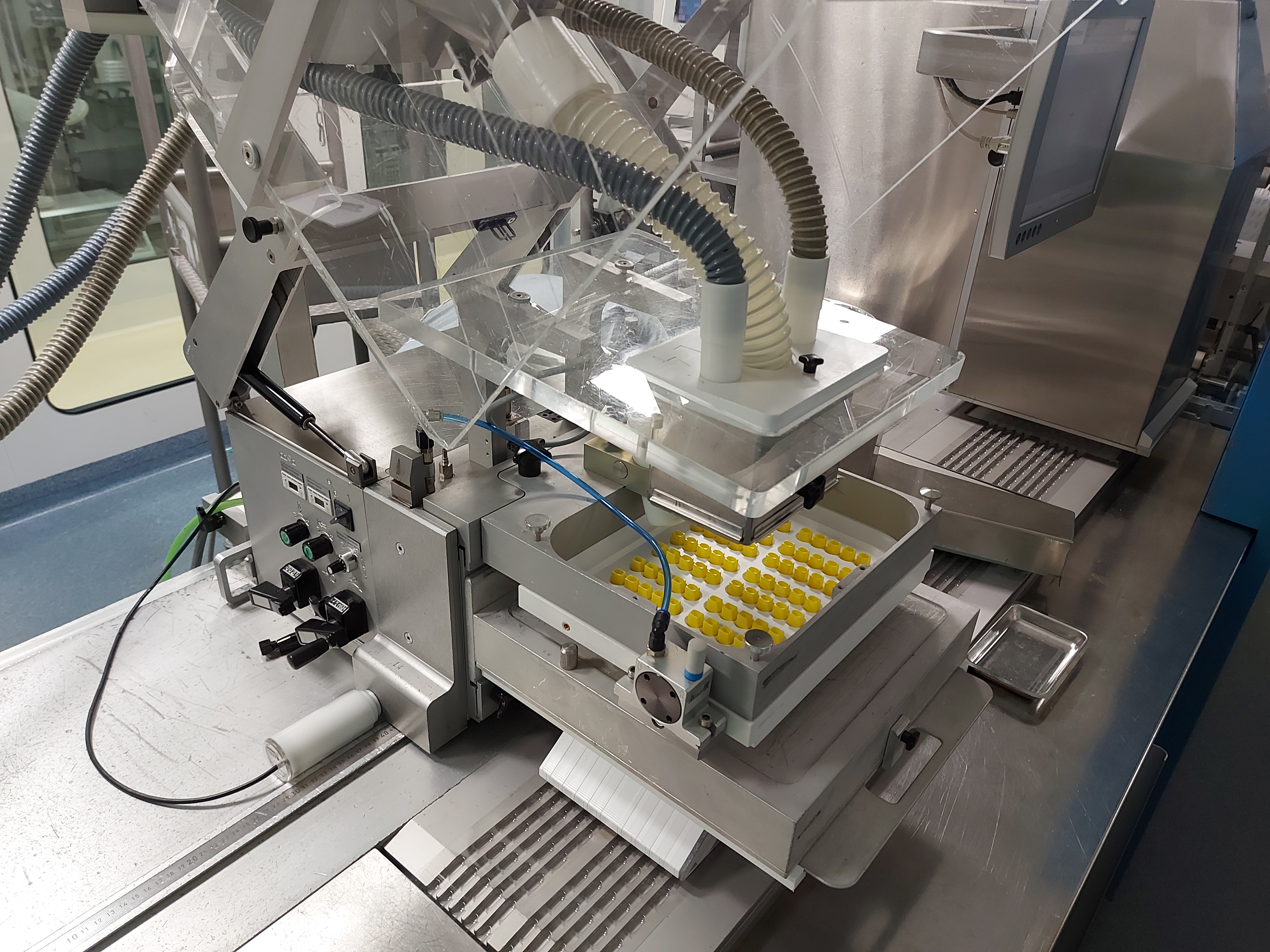

• Dedicated feeder (standard feed channel vertical) for tablet / capsules
• Sealing roller and preferential roller cooled
• Product inspection with CCD colour camera VisioChrom (model 2014)
• Compact station with embossing, perforation, die-cutter
• Reject station for partially filled/empty

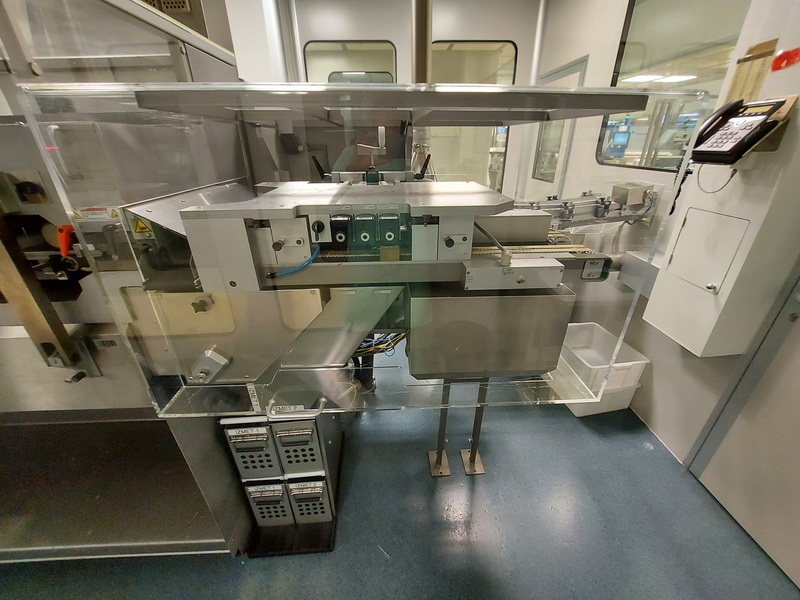

• Transfer conveyor to cartoner
• PLC Beckhoff IPC
• HMI Beckhoff
• Hapa printing unit
• Without cooling unit
• Drive 230/400V/50Hz

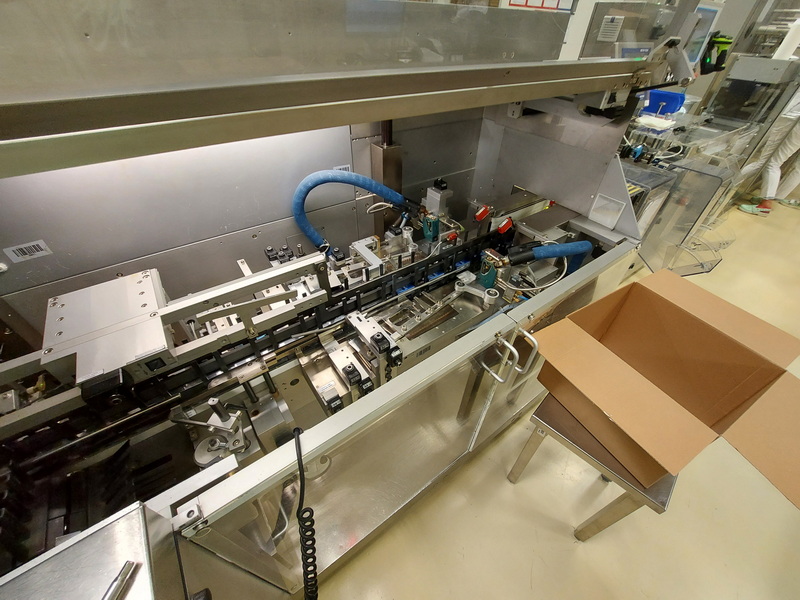

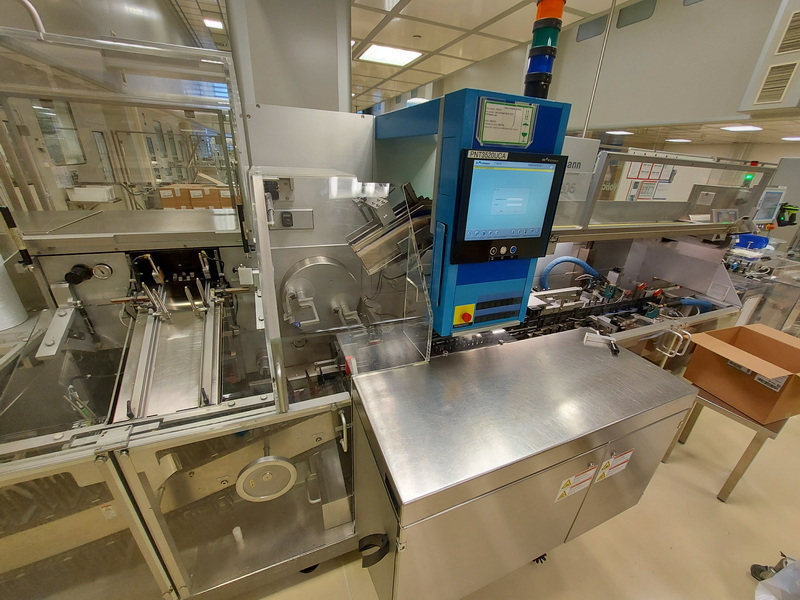

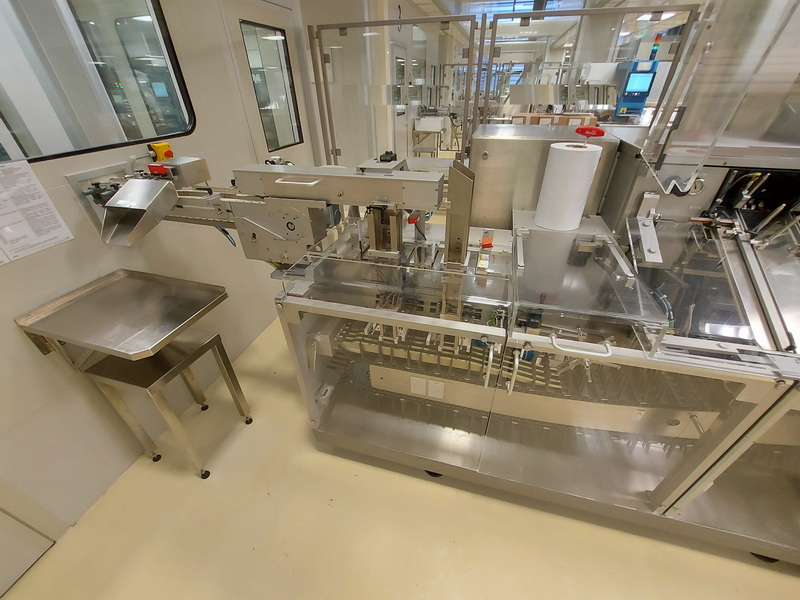

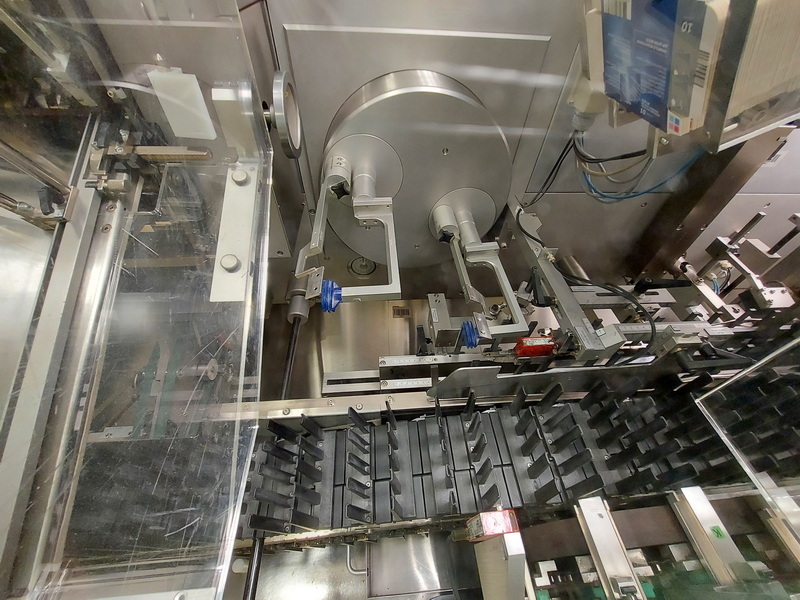

Folding box cartoning machine C 2055:
• Output 10-250 folding boxes/min
• Format range folding box w 30-100, h 15-90, l 63-150 mm
• Closure double-sided offset tuck-in flaps
• Additional double-sided gluing station pre adjusted
• Blister stacking device, blister refeeding chute
• 2 suction arms for folding box transfer and counter suction for pre-breaking
• Automatic brochure folder and inserter GUK FA 21/4 Cartonac 91 from magazine, brochure format (LxW) 100-210 x 80-600 mm
• Bad package ejection with counter-check
• HMI Beckhoff (retrofitted 2014)
• Drive 230/400V/50Hz

The complete plant is dismantled and unpacked in the operator's heated outdoor warehouse in Southern Europe.

-
