Pos.-No.: 99-0820
Pos.-No.: 99-0820

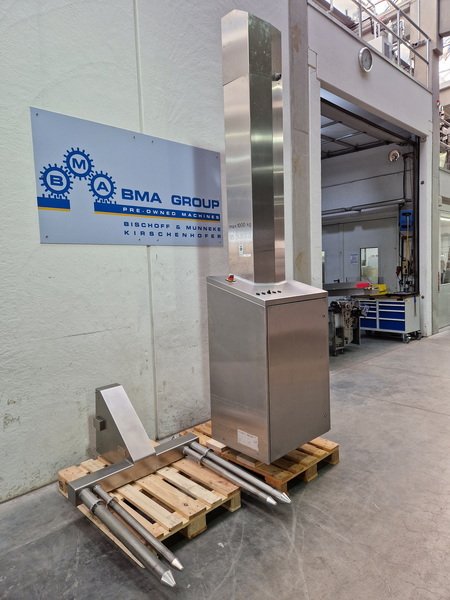

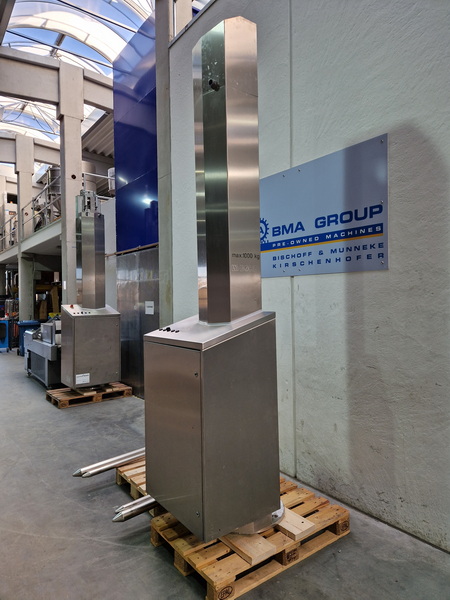

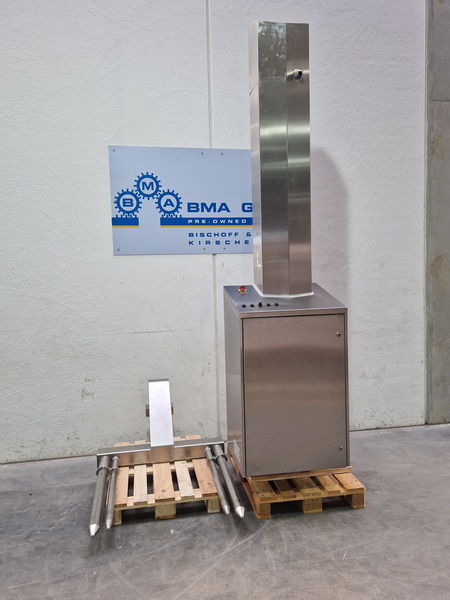

Bohle HS 1000
Lifting device
Make: Bohle
Type: HS 1000
Model: 2010
Description:
• Perm. load 1,000 kg
• Lifting mast with floor and/or ceiling support
• Overall height 3,400 mm without overhead support
• Overall height 4,200 +/- 50 mm with overhead bearing (included in delivery)

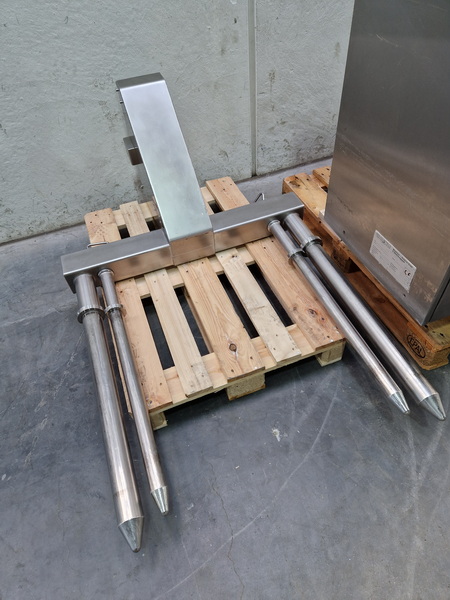

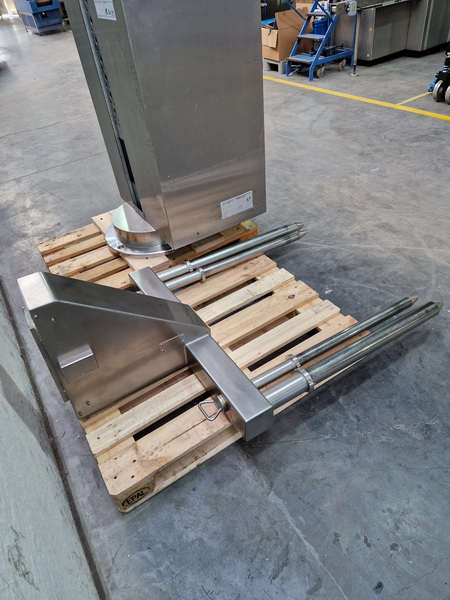

• Load pick-up for Bohle container MCG500 (mandrels unscrewable) and MCG900 (mandrels fixed)
• MCG500 mandrels diam. 50 mm, L 710 mm, centre distance 920 mm
• MCG900 mandrels diam. 70 mm, L 780 mm, centre distance 750 mm
• Lower end position 412 mm, upper end position 2,587 mm (centre of mandrel-floor in each case)

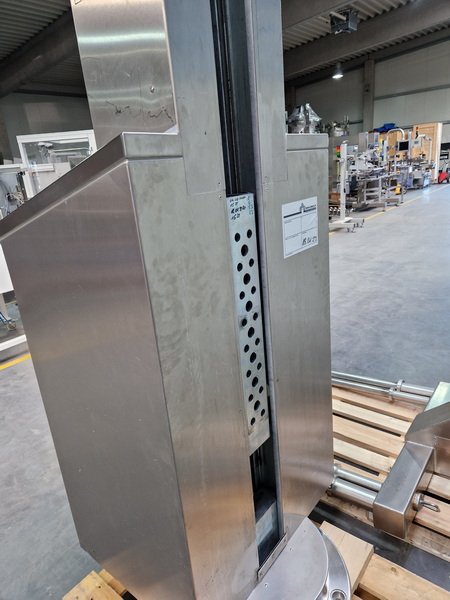

• Lifting column electrically swivelling
• Lifting column electrically liftable by chain drive
• Drop safety device load pick-up
• Drive 24/400V/50Hz/1,26KW
